Seikoh Giken Polishing Holder Buyers Guide

SFP-

For Seikoh Giken polishing machines, capacity is the bold numeral in the part number. SFP-Lite capacity is 1.



Polishing Machine



SFP-550/550S

SFP-70D2 (IPC)

SFP-Lite

Connector

Standard holder

PH55-

High volume holder

PH55-

PH072-

PHRM-

FC/PC

FP-20



FP-2

FP

FC/APC, stepped ferrule, narrow key1

FP8R-18-I



FP8R-2

FP8R

FC/APC, stepped ferrule, wide key2

FP8N-18-I



FP8N-2

FP8N

FC/APC, conical ferrule, narrow key1

FP8RC-18-I



FP8RC-2

FP8RC

FC/APC, conical ferrule, wide key2

FP8NC-18-I



FP8NC-2

FP8NC

SC/PC

CP-20

CP-32

CP-2

CP

SC/APC, stepped ferrule

CP8A-18

CP8A-32

CP8A-2

CP8A

SC/APC, conical ferrule

CP8C-18

CP8A-32

CP8C-2

CP8C

ST/PC

SP-20

SP-28

SP-2

SP

LC/PC3

PL-20

PL-40

PL-2

PL

FL-24

PL-48

LC/APC3

PL8A-20

PL8A-40

PL8A-2

PL8A

PL8A-24

PL8A-48

MU/PC

PM-24

PM-40

PM-2

MP

MU/APC

PM8A-20



PM8A-2

MP8A

SMA-905

M5P-18



M5P



M5P-12

OptiTap

OPT8C-10



Repolishing:
OPT
8C-1



DIN/APC

DIN8A-18







Ferrule









PC, 2.5mm

FF-20

FF-40N

FF-2



APC, 2.5mm, stepped, 1.5mm key

FF8A-18-1.5



FF8A-2-1.5



APC, 2.5mm, stepped, 1.3mm key

FF8A-18-1.3

FF8C-40N-1.3

FF8A-2-1.3



APC, 2.5mm, conical, 1.5mm key

FF8C-18-1.5

FF8CX-40-1.5

FF8C-2-1.5



APC, 2.5mm, conical, 1.3mm key

FF8C-18-1.3

FF8CX-40-1.3

FF8C-2-1.3



PC, 1.25mm

FLM-16

FLM-40N

FLM-2



E2000/PC (R&M)

EF-18-R



EF-2-R



E2000/APC (R&M)

EF8A-18-R

EF8A-40N-R

EF8A-2-R



E2000/PC (H&S)

EF-18-H



EF-2-H



E2000/APC (H&S)

EF8A-18-H



EF8A-2-H



MIL-T-29504

MIL04-16



MIL04-2



MIL-T-29505

MIL05-16



MIL05-2



MT-RJ/PC (mini)

inner

MTRJ-12B







outer

HMT-12C

MT/PC (big)

inner

MT-12B

MT-24

Repolishing:
PH072-MT-1



outer

HMT-12C

MT/APC

inner adhesive removal

MT-12B







inner polishing

MT8A-12B







outer

HMT-12C







Connector

Part Number

PH55-


SC/PC

CP-20

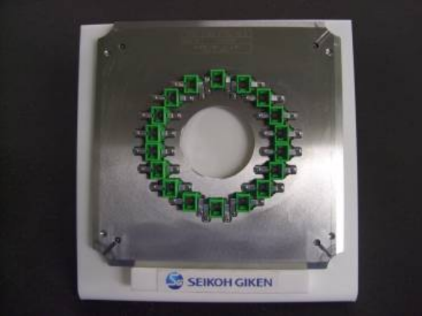

SC/APC:
Step ferrule
Conical ferrule


CP8A-
18

CP8C-18

FC/PC

FP-20

FC/APC:
Step ferrule, narrow
Conical ferrule, narrow
Step ferrule, wide
Conical ferrule, wide

FP8R-18-I

FP8RD-18-I

FP8N-18-I

FP8NC-18-I

2.5mm Ferrule/PC

FF-20

Photo to be taken

2.5mm Ferrule/APC

Step ferrule, 1.3mm key

Conical ferrule, 1.3mm key

Step ferrule, 1.5mm key

Conical ferrule, 1.5mm key

FF8A-18-1.3

FF8C-18-1.3

FF8A-18-1.5

FF8C-18-1.5

1.25mm Ferrule/PC

FLM-16

ST/PC

SP-20

LC/PC

PL-24

LC/APC

PL8A-20

Photo to be taken

LC/PC (simplex & duplex)

PL-32DHP

LC/APC

PL8A-32DHP-POR

E2000/PC (H&S)

EF-18-H

Photo to be taken

E2000/APC (H&S)

EF8A-18-H

SC/PC

CP-32

SC/APC

Step ferrule

Conical ferrule

CP8A-32

CP8C-32

LC/PC

PL-40

LC/APC

PL8A-20

Photo to be taken

LC/PC

PL-48

LC/APC

PL8A-48

LC/PC simplex & duplex

PL-48DHP

2.5mm Ferrule/PC

FF-40

2.5mm Ferrule/APC

Step, 1.3mm key

Conical, 1.3mm key

Step, 1.5mm key

Conical, 1.5mm key

FF8A-40-1.3

FF8C-40-1.3

FF8A-40-1.5

FF8C-40-1.5

1.25mm Ferrule/PC

FLM-40

MU Ferrule/PC

PM-40

MU Ferrule/APC

FM8A-40

E2000/PC (R&M)

EF-40-R

Photo to be taken

E2000/APC (R&M)

EF8A-40-R

MT/PC

MT-24S1

MT/APC

MT-248AS1

MT/PC

MT-12R1

MT/PC

MT-36S1

OFL-15A

For the Seikoh Giken (formerly Seiko Instruments) OFL-15A polishing machine:

Connector

Polishing Jig



Capacity

Polishing Disk

ST/PC

KKJ301100G


12



SC/PC

KKJ101510G


12



SC/PC

(push-pull type)

KKJ101520G


12

KMD100100G

SC/APC, 8°

KKJ101320G


12

KMD100301G

FC/PC

KKJ101401G


12



FC/APC, 8°, narrow key1

KKJ101630G


12



FC/APC, 8°, wide key2

KKJ101620G


12



LC/PC

KKJ401200G


16

KMD100100G

LC/APC, 8°

KKJZM01802G


12

KMZM02101G

E-2000/APC (plastic flange ferrule)

KKJ101310G


12



E-2000/APC (metal flange ferrule)

KKJ101311G


12



MU/PC

KKJ401301G


12



MU/APC, 8°

KKJZM01B04G


12



MT/PC

KKJ501200G


12



MT/APC, 8°

KKJ501100G


12



MT-RJ/PC

KKJ501300G


12



2.5mm, PC

KKJ101101G


12



2.5mm, PC

KKJ101111G


16



2.5mm, PC

KKJ101701G


24



2.5mm, APC, 8°

KKJ101340G


12



1.25mm, PC

KKJ401120G


16



1.25mm, PC

KKJ401400G


24



2.5mm, PC (V-groove type)

KKJZM04801G


24



1.25mm, PC (V-groove type)

KKJZM06601G


24



2.5mm, PC (simplified SC plug)

KKJZM04802G


24



Notes:

1) Narrow key = 2mm (R-type)

2) Wide key = 2.14mm (N-type)

3) Available in standard and high pressure (HP) versions
