Indonesian Ground Forces
[DRAFT] [NOT FINAL] [SUBJECT TO CHANGE]
Forum Suggestion Page:
Indonesian Sub-tree: Bhinneka Tunggal Ika! | Ground | War Thunder Forum
Preliminary Notes:
- Wiesel 1a4 removed, was tested extensively but wasnt purchased | more information
- Hino skyshield removed, apparently cannot fire while on the vehicle, it's only used for transport. | See here
- AMX-10P marine removed, only armed with a 12.7mm not the 20mm revised, Indonesian amx-10p does have the 20mm as well as the 12.7mm
- SBS LT (20mm) no source on the gun, looks like a Rh-202 cannon, could be wrong. If it is then it could move up to rank 5
- Humfox was actually used by the Indonesians. They classify it as stuart tanks since it has the same 37mm found on the stuarts.
- M4A3 changed to the 105mm version from the picture, the picture most likely shows the 105mm rather than the 75mm
- General data for all ranks done
03/09/24
- Saw an anoa with a long barrel RCWS on my timeline and it immediately disappeared, currently trying to find it again RCWS respati 12.7mm long barrel, not a cannon
- Probably best to wait until November so that we can see new stuff showcased in Indodefence 2024 IndoDefence has been postponed until further notice, so most likely around January or February IndoDefence 2025 new date is on 22-25 January, 2025 Further delays for IndoDefence, likely until June
- Lack of sources:
- LVT(A)(1) w/ 37mm stuart cannon, was mentioned but has no known images
- M4A1(75)W, mentioned, had been received alongside the M4A3s. No images, most likely was scrapped for resources
29/12/2024
- Added the P8 LT

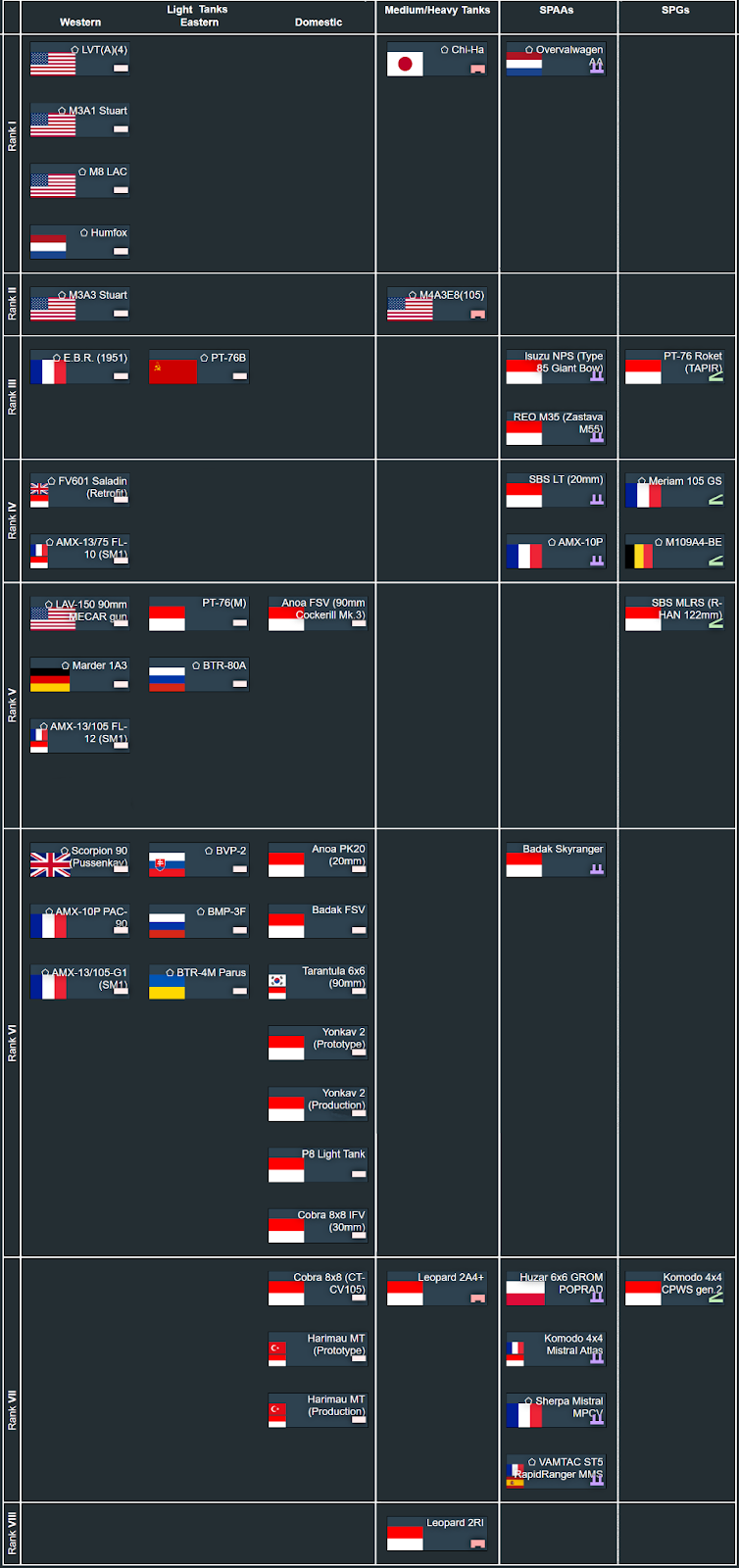

Tree image (Edit V4)
https://i.imgur.com/2ealbCX.png
Rank 1 |

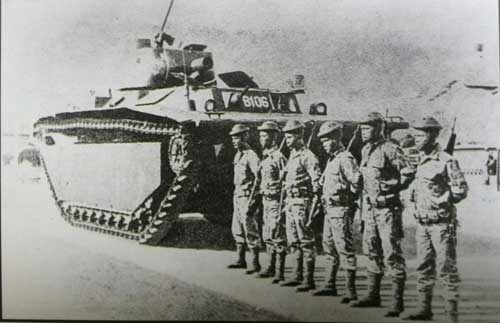

⬠ LVT(A)(4) Description LVT armed with the M8’s 75mm M2 Howitzer. Indonesia inherited the LVTs alongside other armored vehicles after the Round Table Conference. The Indonesian Commando Corps was then trained by the Dutch in operating and maintaining a handful of armored vehicles, the LVT included. This program is called the Military Mission for Indonesia. Though other variants of the LVT survived as museum displays, the (A)(4)’s fate specifically is unknown. Specifications Weight : 18.6 tons Length : 7.9m Width : 3.2m Height : 3.1m Crew : 5 Engine : Continental W-670-9A 250bhp at 2400rpm Max Speed : 40km/h Armour : 6.4mm - 38.1mm Armaments Gun : 75mm M2 Howitzer Secondary : 12.7 mm M2 Browning Machine Gun on top of turret Source |

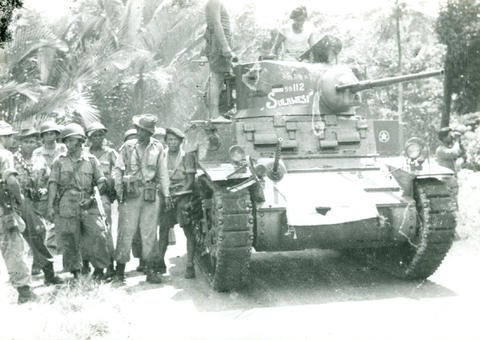

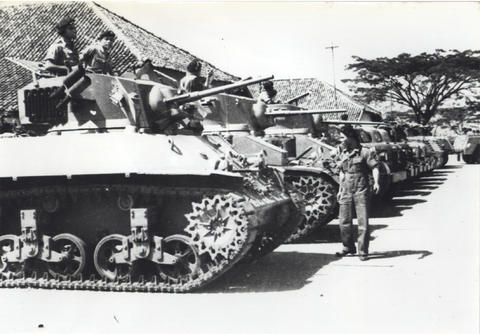

⬠ M3A1 Stuart Description Several M3 Stuarts were captured during the national revolution as well as inherited from the KNIL after the revolution. All of the Stuarts were spread across different regions however they were combined into one squadron with each local regional military command entrusted to utilize the vehicle. They were used against separatist movements throughout the years, among them being utilized against RMS in the invasion of Ambon. Specifications Weight : 13 tons Length : 4.5m Width : 2.2m Height : 2.3m Crew : 4 Engine : Continental W-670-9A 250bhp at 2400 rpm Max Speed : 57km/h Armour : 15mm - 50mm Armaments Gun: 37mm M6 Cannon Secondary: 1x .30cal M1919A4 Browning machine gun Source - M3A3 Stuart: Light Tank Legendaris Yang Masih Punya “Gigi” - M3A1 Stuart III : United States of America (USA) - DEFENSE STUDIES: Kisah Tank M4 Sherman dan M3 Stuart dalam Dunia Militer Indonesia |

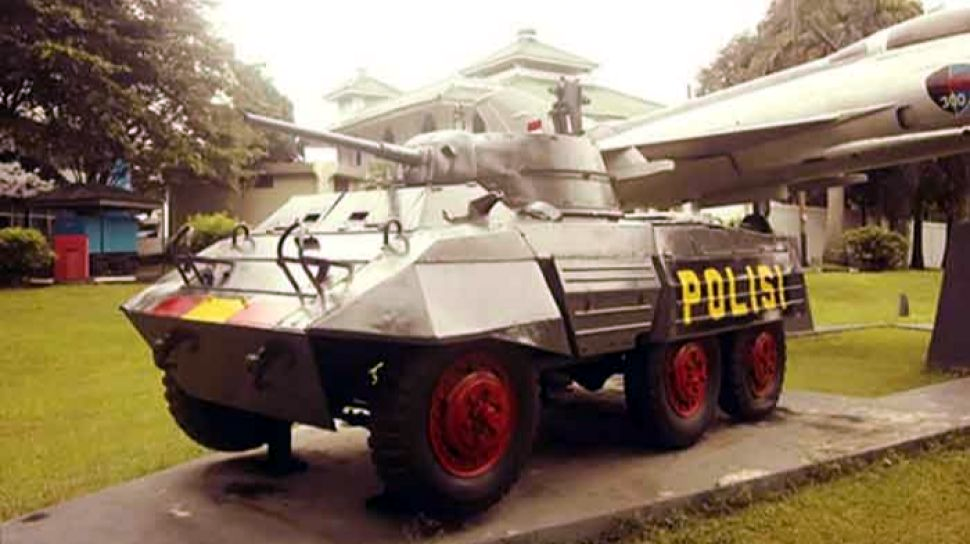

⬠ M8 LAC Description Used by the Mobile Brigade Corps of the Indonesian National Police. Its operating year is not exactly clear, there were rumors that the Indonesian Army gifted the M8 to the Mobile Brigade Corps in the end of the 60s to the 70s. But other sources state that it has been used by the national police since 1949. The number of Greyhounds used is unknown but now they mostly remain as a display piece. Specifications Weight : 7 tons Length : 5m Width : 2.54m Height : 2.2m Crew : 4 Engine : Hercules JXD 110bhp at 3000 rpm Max Speed : 88km/h Armour : 6mm - 20mm Armaments Gun : 37mm M6 Cannon Secondary : - 1x .50cal M2HB Browning Machine Gun (Roof) - 1x 7.62 mm M1919A4 machine gun (Coax) Source - M8 Greyhound : United States of America (USA) - M8 Greyhound: “Bangkitnya” Ranpur Brimob Polri dari Era Perang Dunia II - Mengenal M8 Greyhound, Kendaraan Kelas Berat Milik Korps Brimob Polri |
⬠ Humfox Stuart Description Hull of a Fox Armored Car and a Humber Mk.IV 37mm turret. These vehicles were originally used by the Dutch and then inherited by the Indonesian Army after the end of the National Revolution. The Indonesian Army classified the Humfox as a version of the Stuart tank, so that’s most likely why its existence is rarely mentioned. Only 1 known Humfox remains as a display piece in the Pusdikpal (Equipment Education Centre) in Bandung Specifications Weight : 8 tons Length : 5.10m Width : 2.30m Height : 2.30m Crew : 3 Engine : GMC 6-Cylinder petrol engine (104hp) Max Speed : 71km/h Armour : up to 15mm Armaments Gun : 37mm M6 Cannon Secondary : - 1x 7.92 mm Besa machine guns (coax) - Smoke Grenades Source - Top 10 Strangest Armored Cars of WWII | War History Online - Fox Armoured Car - Wikipedia - PANSER STUART PUSDIKPAL - SADAYAPADU |

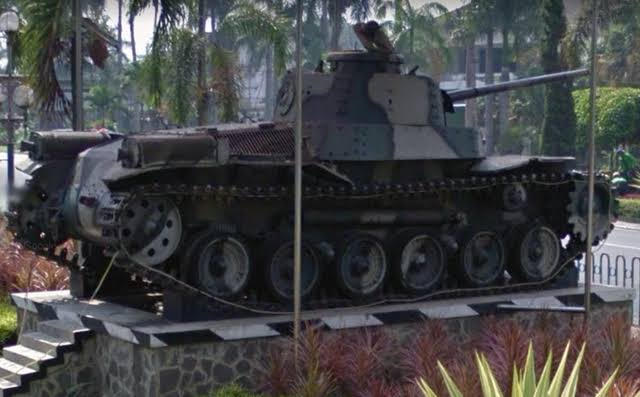

⬠ Chi-Ha Description Captured Japanese Type 97 Chi-Ha. One was obtained by the Indonesian Youths in Surabaya in November 1945. Currently displayed in the Brawijaya Museum in Malang. From the turret it looks like the 57mm variant and not the 47mm gun. The display tank doesn’t have the 57mm because presumably the cannon seems to have been removed from the turret and was replaced by a mock barrel. Specifications Weight : 14 tons Length : 5.5m Width : 2.3m Height : 2.2m Crew : 4 Engine : Mitsubishi SA12200VD V-12 Diesel Engine (170hp at 2000 rpm) Max Speed : 38km/h Armour : 15mm - 25mm Armaments Gun : 57mm Type 97 Cannon Secondary : 2x 7.7mm Type 97 Machine Guns (1x coax) (1x turret) Source - Tomczyk, A. (2002). Japanese Armor Vol. 2. AJ-Press. - Jejak Tank yang Legendaris di Museum Brawijaya - Malang - Kompasiana.com |

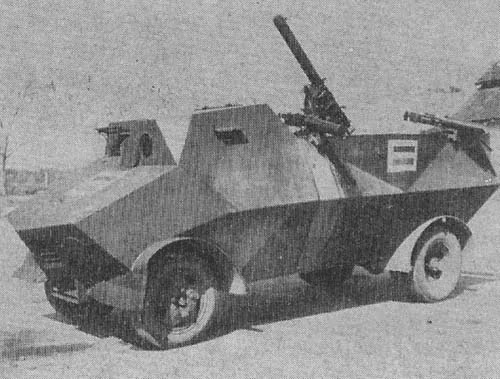

⬠ Overvalwagen (Type B) AA Description An armored vehicle based on the 1940 Chevrolet COE trucks and was manufactured in Surabaya. The anti-air version is equipped with a .50 cal water-cooled browning and 4 additional 7.7mm vickers guns on each side of the hull. Was used in the defense of the Dutch East Indies and captured by the Japanese, and then saw service again during the Indonesian National Revolution. Several of the Overvalwagen were converted for use in railways by the Dutch. The remaining stock Overvalwagens were then transferred to the Indonesian Army after the end of the National Revolution and presumably all of them were transferred into armored rail vehicles as well. Two still remain as museum pieces, but both are of the rail variant. Specifications Weight : 6 tons Length : 4.20m Width : 2.20m Height : 2.10m Crew : 3-7 Engine : Chevrolet Mercury V8 (95hp) Max Speed : 90km/h Armour : 6mm - 20mm Armaments Gun : .50cal Water-cooled Browning M2 Machine Gun Secondary : 4x 7.7mm Vickers Machine Guns on the sides (2 each side) Source |
Rank 2 |
⬠ M3A3 Stuart Description A further development of the M3A1 with a reworked front hull and turret. The Stuarts were originally British. When the UK pulled out of the Indonesian National Revolution, these vehicles were then handed to the Dutch, who then handed them to the Indonesians after the end of the National Revolution. Specifications Weight : 14 tons Length : 4.52m Width : 2.24m Height : 2.64m Crew : 4 Engine : Continental W-670 gas engine Max Speed : 58km/h Armour : 9.5mm - 50mm Armaments Gun : 37mm M6 Cannon Secondary : - 3x .30cal M1919A4 Browning machine gun (2x coax, turret and hull) (1x roof) - Smoke Grenades Source - M3A3 Stuart: Light Tank Legendaris Yang Masih Punya “Gigi” - M3A1 Stuart III : United States of America (USA) - DEFENSE STUDIES: Kisah Tank M4 Sherman dan M3 Stuart dalam Dunia Militer Indonesia |

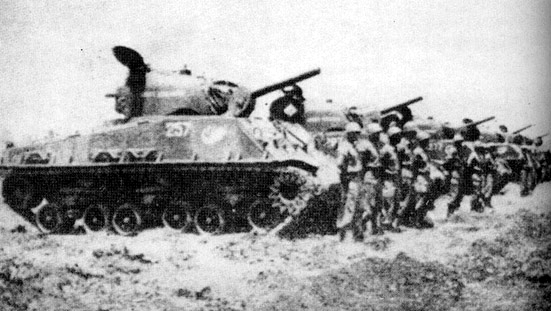

⬠ M4A3E8 (105) Description M4A3 Sherman with HVSS suspension. The British (and then the Dutch) operated around 21 Sherman tanks during the National Revolution, and 3 tanks were subsequently destroyed by the Indonesians with captured IJAF cannons. It’s worth noting that there’s barely any images that show the tank in Indonesian service. What is fully known is that the KNIL transferred 9 Shermans of either M4A1 or M4A3 (75mm & 105mm) to Indonesia after the Round Table Conference. The M4A3 is the only suggestion because the m4a1 does not have any pictures of it being used. After some discussion the turret seems to be the 105mm rather than the 75mm. All of the Shermans are presumed to have been salvaged for scraps since there’s almost no trace of them left in Indonesia, except for the singular T14E1 ARV in Bandung. Specifications Weight : 30 tons Length : 6m Width : 2.6m Height : 2.7m Crew : 5 Engine : Ford GAA V8 engine (450bhp @ 2600 rpm) Max Speed : 42km/h Armour : 19mm - 89mm Armaments Gun : 105mm M4 cannon Secondary : - 1x 7.62 mm M1919A4 machine gun (coax) - 1x 12.7mm Browning M2HB Machine gun (roof) Source - M4A3 Sherman: Sejarah Tank Pertama Korps Marinir TNI AL - DEFENSE STUDIES: Kisah Tank M4 Sherman dan M3 Stuart dalam Dunia Militer Indonesia - Ada M32 Tank Recovery Vehicle di Cimahi, Tank Reparasi ‘Pertama’ di Indonesia - M4A3 Sherman : United States of America (USA) |
Rank 3 |

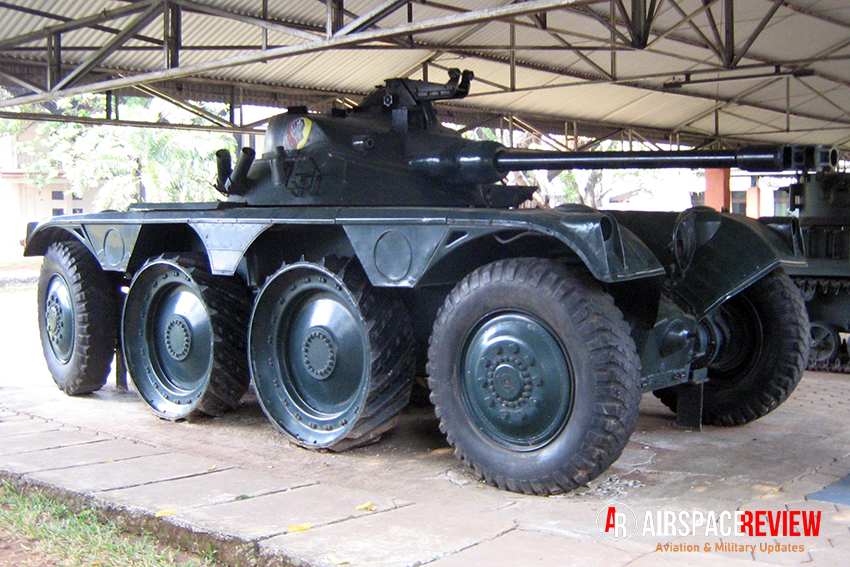

⬠ E.B.R. (1951) Description Indonesia Cavalry Battalion's first proper "tank". The EBRs were obtained alongside AMX-13s in 1962 but were only used for a short time and were retired in 1970. They were put into the Yonkav2 Cavalry Battalion. Not much is known of the amount of EBRs in Indonesia during this time, it can be presumed that their number is relatively low, however two vehicles had survived and are now being displayed as museum pieces. Specifications Weight : 13.5 tons Length : 6.15m Width : 2.42m Height : 2.24m Crew : 4 Engine : Panhard 12H6000S 264.5bhp at 3700 rpm Max Speed : 105km/h on road (69km/h on dirt) Armour : 10mm - 40mm Armaments Gun : 75mm SA49 Cannon with 56x rounds Secondary : - 3x 7.5mm MAC31 machine gun (1x coax, 2x in hull) - Additional pintle mounted machine gun on top of the turret of unknown type, probably the same 7.5mm MAC31 Source - Panhard EBR - Ranpur Berkemudi Ganda Kavaleri TNI AD - EBR 75 Modèle 1951 (avec la tour FL11) - Mengenal Panser Kanon FSV Generasi Awal Milik Yonkav TNI AD (Bagian 1) |

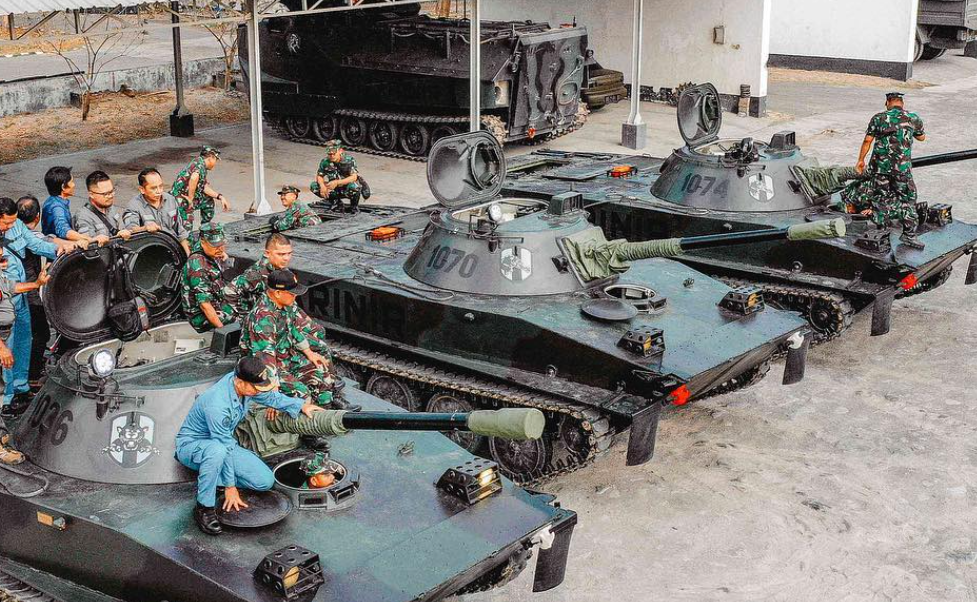

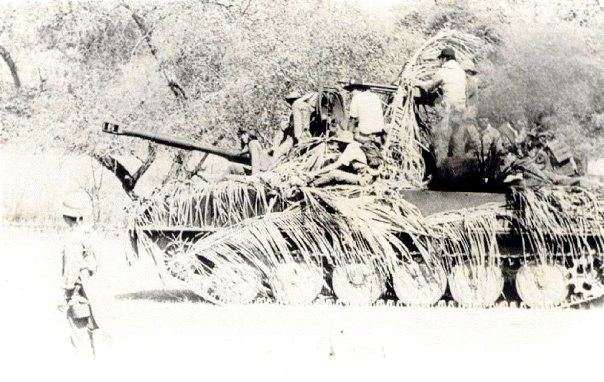

⬠ PT-76B (DshK Mod) Description Improved version of the PT-76 with a D-56TS stabilized gun and other upgrades. They were among the first few types of tanks purchased by Indonesia in 1962 along with the French’s AMX-13s. Around 50 PT-76B were purchased from the Soviet Union. The PT-76Bs were assigned to the Navy Commando Corps in preparation for Operation Jayawijaya, the invasion of Papua, however this operation didn’t happen because on the day of the operation the Dutch had given up their control over Papua in the New York Agreement. They were also used in other military operations throughout the year and it’s still being used by the Navy, both the original PT-76B and the modernized PT-76(M) Version. Specifications Weight : 14 tons Length : 7.20m Width : 3.14m Height : 2.37m Crew : 4-6 Engine : Diesel Type V.6 240hp Max Speed : 44 km/h (10.2km/h in water) Armour : 5mm - 15mm Armaments Gun : 76mm D-56TS Cannon Secondary : - 1x 7.62 mm SGMT machine gun (Coax) - 1x 12.7mm DShK machine gun (Roof) Source |

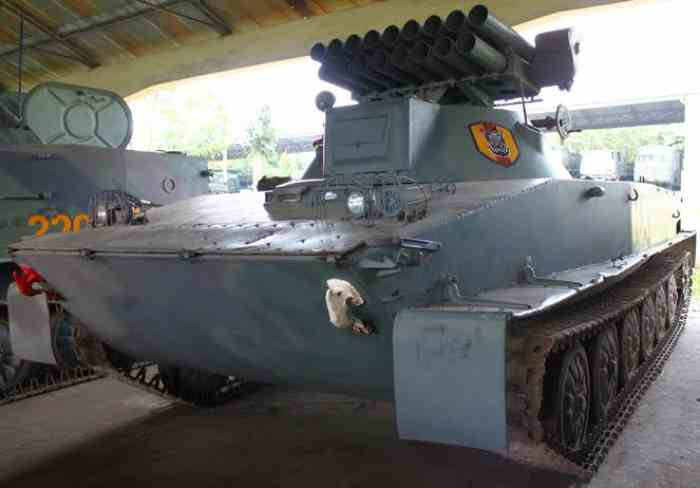

TAPIR (PT-76 Roket) Description Standard PT-76B but with the cannons removed and switched to the BM-14-17 MLRS. The conversion was conducted by PT Also Putra Indonesia in 1995, the same company that retrofitted the PT-76(M). The turret was not replaced, only the gun was removed and a BM-14-17 launcher was fitted on top of the turret. This tank only went to prototype stage due to a lack of funding. This tank is now displayed in the Marine Corps Museum in Sidoarjo. Specifications Weight : 14 tons Length : 7.20m Width : 3.14m Height : 2.37m Crew : 4-6 Engine : Diesel Type V.6 240hp Max Speed : 44 km/h (10.2km/h in water) Armour : 5mm - 15mm Armaments Gun : BM-14-17 (8U35) 17-round MLRS System Source - Museum Label, PT-76 Roket (Palawa Tank). Museum Korps Marinir, Sidoarjo - Integrasi KAPA dengan Peluncur MLRS, Solusi Alutsista Batalyon Roket Korps Marinir - PT-76 MLRS - Prototipe Tank MLRS Amfibi Marinir yang Terlupakan |

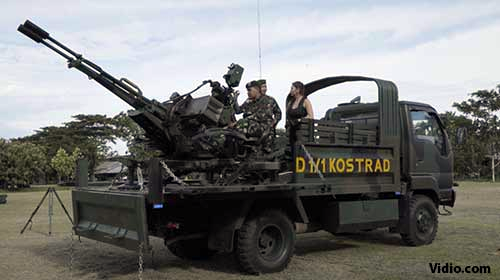

Isuzu NPS75 Giant Bow Description Isuzu truck mounted with a chinese copy of the ZSU-23-2, Type 80 Giant Bow. The Giant Bows were and still are used in the Air Defence Artillery Battalion 1 of Kostrad. Is a part of an Air Defence System but can be used independently. Indonesia obtained roughly around 18 of the guns, with an unknown number mounted on the truck. Specifications Weight : 6.95 tons (loaded with gun) Length : 6m Width : 2m Height : 2.4m Crew : 4-6 Engine : Isuzu HK1-TCN (520hp) Max Speed : around 90-100km/h Armour : 0mm Armaments Gun : Type 80 Giant Bow (Chinese ZSU-23-2) Source - Isuzu Elf NPS 4×4 Giant Bow 23mm: Jadi Truk TNI Berdaya Gempur Tinggi - Isuzu NPS 75 4×4 , Truk Taktis Terbaru Andalan TNI – AWANSAN - Type 80 Giant Bow 23mm: Kanon Perisai Bandara Soekarno Hatta |
REO M35 (Zastava M55) Description The trucks were first obtained in around the 70s, they were originally used by the Americans in the Vietnam War. Vehicle is a right-hand drive but unknown whether it’s a license version by KIA from South Korea, source states it is a REO M35 so it’s likely to be a modification. The truck is used by many different branches of the Armed Forces and in addition participated in many different military operations throughout the years. This vehicle was used by the Paskhas (AFB defense corp) and was fitted with the 20mm Zastava M55 triple gun with a practical fire rate of around 700 rpm with a max elevation of around 83° and a depression of around -5°. Although still in service with some units, the M55s had been retired and changed to the QW3 MANPADS and the Oerlikon Skyshield. Specifications Weight : 8 tons (+1 ton for the gun) Length : 7.0m Width : 2.4m Height : 2.8m (without the gun) Crew : 3 Engine : REO OA-331 (127hp) Max Speed : 93 km/h Armour : 0mm Armaments Gun : 20mm Zastava M55A2 Triple Gun Source - Triple Gun - Alutsista "Khas" Kopasgat TNI AU - Ssst... Ada Kanon Triple Gun di Kapal Patroli Milik PolAir - REO M35: Truk Legendaris Multi Peran, Kondang di Kancah Perang Vietnam Hingga Operasi Seroja |
Rank 4 |

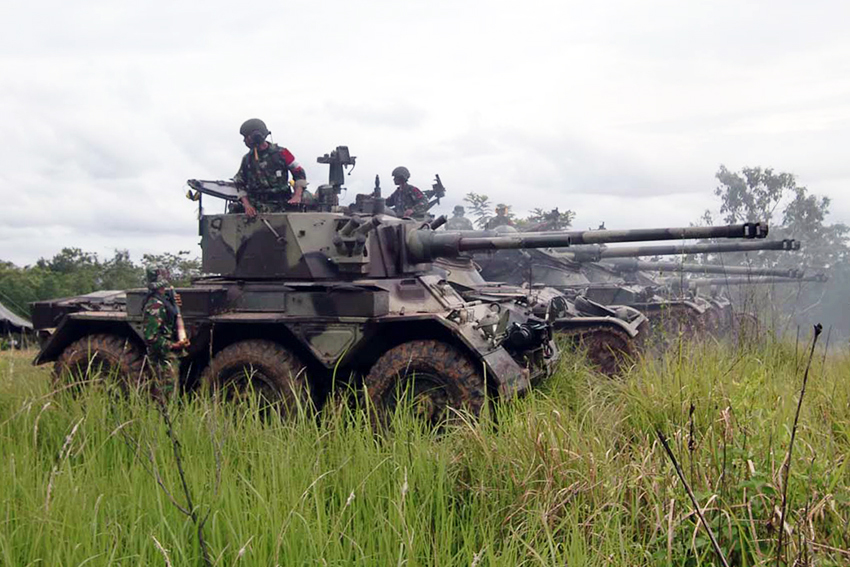

⬠ FV601 Saladin (Retrofit) Description Originally obtained in around the 60s along with the Ferret and Saracen with the role of a Fire Support Vehicle. Saladin was involved in securing the capital city during the 30th September failed coup. The Indonesian Saladin was retrofitted with a changing of the petrol engine to a diesel one and a semi-automatic Daimler pre-select transmission. This results in an increase of range and weight and a small decrease of speed. For the weaponry the retrofit introduces a periscope which is the same version as the one on the Scorpion tanks as well as a longer barrel version of the cannon. Additionally there is also a winch at the front hull. The retrofitted versions are still being used albeit sparingly. Specifications Weight : 11.6 tons Length : 4.93m Width : 2.54m Height : 3m Crew : 3 Engine : Perkins Phaser Diesel 160T 6-Cylinder Engine (160hp) Max Speed : 70km/h Armour : up to 32mm Armaments Gun : 76mm L5A1 Cannon Secondary : 2x 7.62mm FN MAG Machine Guns (coax and roof) Source |

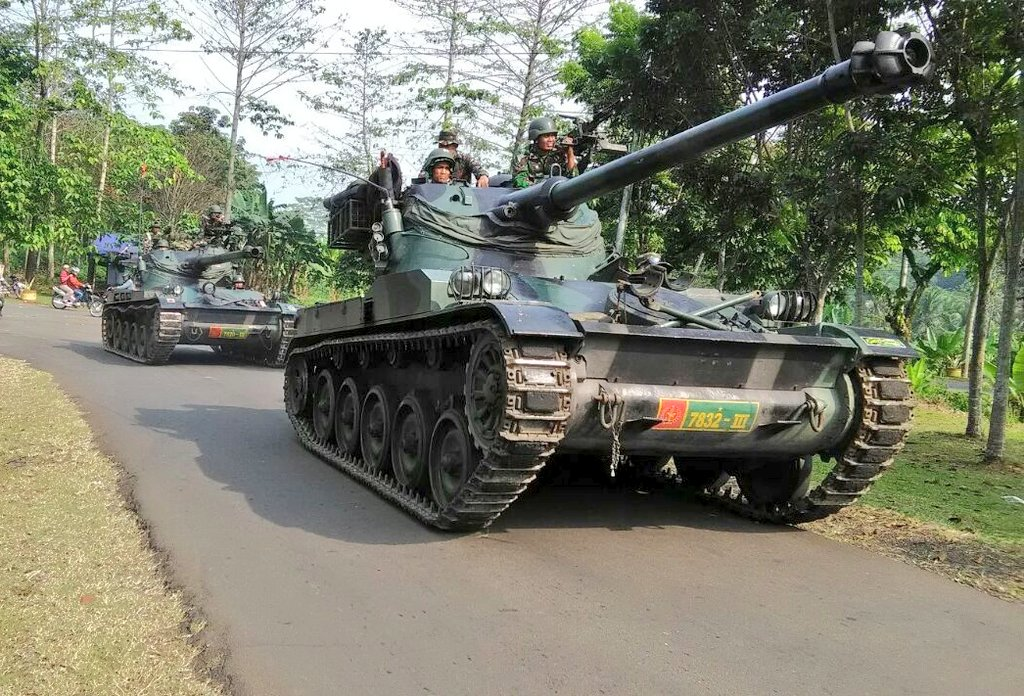

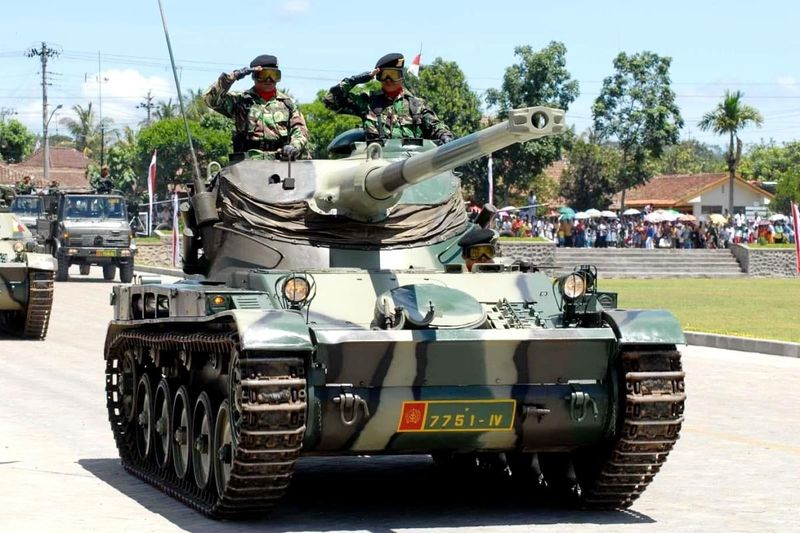

⬠ AMX-13/75 FL-10 (SM1) Description The first 50 amx-13s were purchased between 1960-1965 to bolster Operation Trikora. The tank was domestically retrofitted in Bengpuspalad Central Equipment Workshop in 1995 based on the specifications of the AMX-13SM1 modernization of Singapore. It included a new Detroit Diesel 6V-53T engine and other modernization like the ZF-5WG-180 automatic transmission, new electrical system, and hydro-pneumatic "Dunlopstrut" suspension. The difference is that it is done locally and does not have the upgraded gunner sight thus cannot fire APFSDS, and also the hull was not reworked. The Indonesians have around 300 amx-13s of all variants and they are still continuing to be used and modernized today. Specifications Weight : 14.5 tons Length : 6.35m Width : 2.51m Height : 2.35m Crew : 3 Engine : Detroit Diesel 6V-53T 6-cylinder turbocharged engine (290bhp@2800rpm) Max Speed : 64km/h Armour : 9mm - 40mm Armaments Gun : 75 mm SA 50 cannon Secondary : 1x 7.62mm FN MAG (coax) Source - Robinson, M. P., Lau, P., & Gibeau, G. (2017). *The AMX 13 Light Tank: A Complete History*. Pen & Sword Military. |

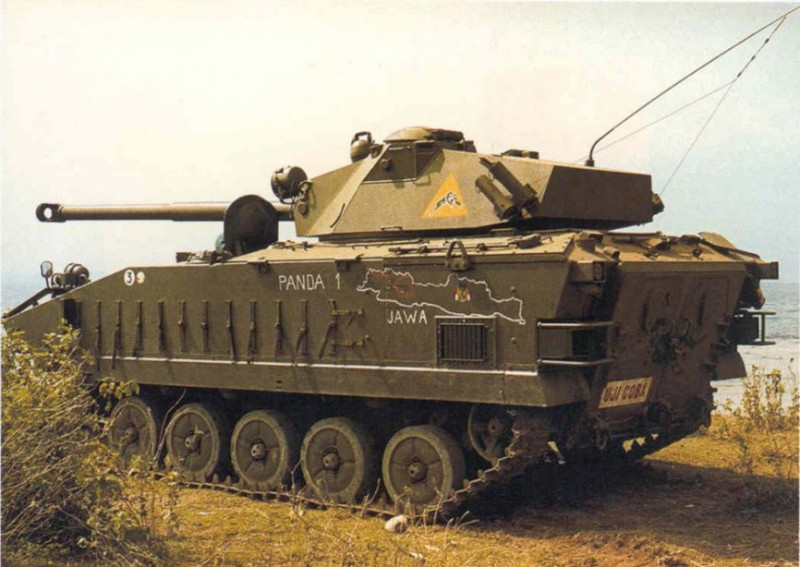

⬠ Meriam 105 GS (AMX MK61) Description Self-propelled artillery piece made from an amx-13 base. These vehicles are called the Meriam 105 GS (Cannon, 105mm, self-propelled) by the Army. They were obtained in around the end of the 70s to 1982 with 57 units bought from the French. They serve in the Medium Artillery Battalion yon armed 4 & 7 where they continue to still be used today. Specifications Weight : 16.5 tons Length : 6.40m Width : 2.65m Height : 2.70m Crew : 5 Engine : SOFAM 8-cylinder petrol engine (250hp) Max Speed : 60km/h Armour : 10mm - 40mm Armaments Gun : 105mm Mle 1950 Howitzer Secondary : 1x 7.62mm M60 Machine Gun (roof) Source |

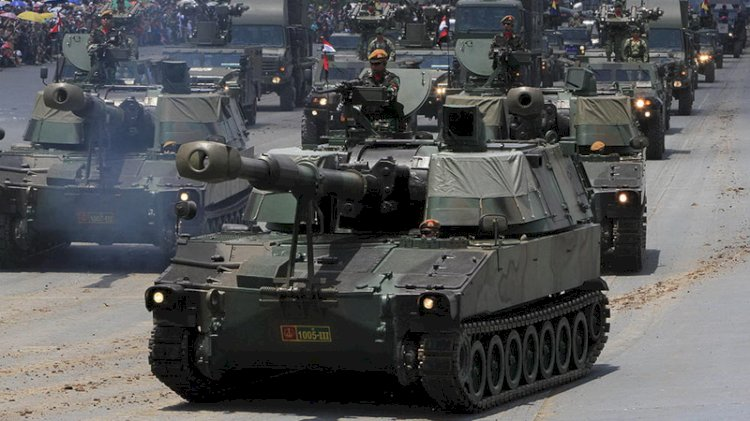

⬠ M109A4-BE Description Self propelled Artillery piece. The A4 Variant is the same as the M109A2/3 but with improved NBC/RAM improvements and a hydraulic turret traverse. Indonesia obtained 36 m109s from Belgium. They were purchased as the replacement for the AMX61s of the Medium Artillery Battalion, such as the Yon Armed 4 and the Yon Armed 7. Specifications Weight : 27.5 tons Length : 9.1m Width : 3.15m Height : 3.25m Crew : 6 Engine : Detroit Diesel 8V71T 8-cylinder Engine (405hp @ 2300 rpm) Max Speed : 56km/h Armour : around 30mm Armaments Gun : 155mm M185 L/39 Howitzer Secondary : 1x .50cal M2HB Machine Gun (roof) Source - M109A4 Paladin: Perkuat Self Tracked Propelled Howitzer Untuk Armed GS TNI AD - M109A4 GS Untuk Armed TNI AD Telah Tiba di Indonesia - Gelombang Kedua M109A4 BE Tiba, Armed TNI AD Kini Punya 36 Unit Self Tracked Propelled Howitzer |

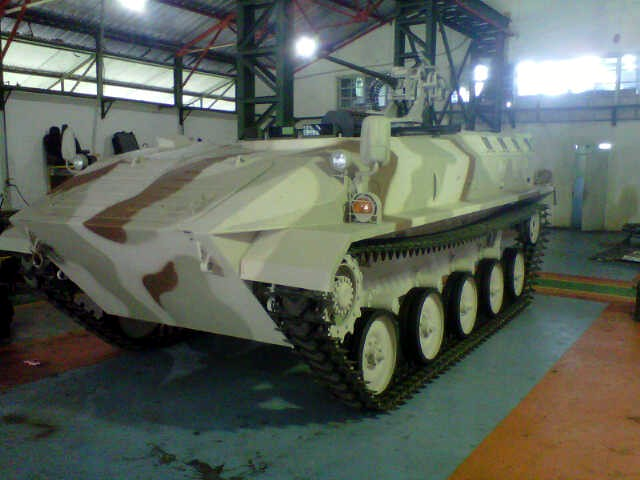

SBS LT (20mm) Description Light tank developed from the AMX-13 VCI. The only Indonesian tank with actual desert camouflage. Classified as a light tank but actually more like an APC. There are two versions, this one with the 20mm cannon and the other with a MLRS launcher. The 20mm is likely to be a Rh202 because that's the only 20mm autocannon that Indonesia uses, and the sources state that the gun is of foreign origin, whereas the rest of the vehicle is domestically made. The status of the prototype is unknown, although it's probably just shelved. Specifications Weight : 13 tons Length : 5.68m Width : 2.77m Height : 1.97m Crew : 3-4 Engine : unknown 6-Cylinder liquid-cooled engine (250hp) (presumed to be the Hino WO6DTI) Max Speed : 70km/h Armour : 10mm Armaments Gun : unknown 20mm gun (most likely the Rh202 autocannon) Source - Pindad SBS Light Tank - Prototipe Ranpur APC dengan Peluncur MLRS |
AMX-10P Marine Description AMX-10P with improved amphibious capabilities and modifications to increase the top speed in water developed for the Indonesian Marine Corps. The AMX-10P arrived in the 1980s. Around 80 units were obtained. It is armed with the 20mm autocannon fitted in the Toucan II turret. The tank is rarely mentioned or used in missions because according to the Marine Corps it is not up to standard with a handful of issues. Even though this variant has improved amphibious capabilities, they were not used in amphibious activities and only used in dry operations by the Marine Corps because of the vehicle’s tendency to flip over. One of the tanks has been preserved as a display piece in the Marine Corps HQ in Surabaya. Specifications Weight : 14.2 tons Length : 5.85m Width : 2.78m Height : 2.57m Crew : 3 Engine : Hispano-Suiza HS 115-2 8-Cylinder liquid-cooled engine (280hp) Max Speed : 65km/h Armour : 14.5mm Armaments Gun : 20mm F2/M963 autocannon Secondary : 7.62mm AAT-F1 Machine gun (coax) Source - Unik, Monumen AMX-10P Marines dengan Cat Loreng KKO Ternyata dalam Kondisi “Aktif” - Mengenal M963 F2, Kanon Kaliber 20mm di Tank AMX-10P IFV Korps Marinir - AMX-10 : Tank Amfibi Modern yang "Gagal" - AAT-F1 Korps Marinir: Senapan Mesin Handal, Sukses Lepaskan 5 Ribu Butir Munisi Tanpa Masalah |
Rank 5 |
Anoa FSV (Scorpion 90) Description Anoa hull with the Scorpion turret fitted with a Cockerill MK3 M-A1. The vehicle itself is based on the French VAB APC with improved suspension and a reworked gunner’s position so the tank is slightly longer than the VAB. The fire support version was showcased in indodefence 2008 and similarly to the scorpion 90 it Isn’t equipped with APFSDS even though it can fire it. Ammunition includes HE, HEAT, HESH and phosphorous smoke shells. This version serves as the precursor to the development of the Badak FSV. The vehicle is also amphibious. Specifications Weight : 14 tons Length : 6m Width : 2.5m Height : 2.9m Crew : 3 Engine : Renault MIDR 062045 inline 6-cylinder turbo-charged diesel engine Max Speed : 90km/h Armour : Stanag Level 3 Armaments Gun : 90mm Cockerill MK3 M-A1 cannon Secondary : 2x 7.62 FN MAG Machine gun (coax and roof) Source |
PT-76M Description A modernization/retrofit for the PT-76Bs. Due to the 30th September Movement and the fallout with the soviet union, spare parts for the Soviet tanks were limited. So it was decided that the PT-76s were to be retrofitted with western equipment instead. There’s two versions, one PT-76(M) retrofitted with the PT-2000 upgrade by NIMDA in the 90s, and this one, which is based on the virtually identical domestic upgrade conducted by PT Lumindo Artha Sejati. Changes include a switch of armament to the Cockerill mk3 90mm gun, new detroit diesel engine, and a new T157 tracks by Chaiseri defense, a Thai company. Even though the gun was changed it still cannot fire APFSDS, armament is the same as the scorpion, HE, HEAT, HESH and phosphorous smoke shells. The tank is also planned to be able to fire Falarick 90 ATGM in the future. Specifications Weight : 14.5 tons Length : 7.20m Width : 3.14m Height : 2.37m Crew : 4-6 Engine : DDA V-92 T Turbo Charge 6 Cylinder 2 stroke engine (290hp) Max Speed : 58km/h Armour : 5mm-17mm Armaments Gun : 90mm Cockerill Mk.III A-2 cannon Secondary : 7.62mm FN MAG Machine gun (coax) Source - PT-76 - Kisah Tank Amfibi Tua TNI-AL - Kinerja Terjaga, Sejumlah Tank Amfibi PT-76M Korps Marinir Mendapatkan Rekondisi - DEFENSE STUDIES: Melihat Final Test Tank PT-76 Rekondisi oleh Lumindo - Tank Amfibi PT-76M Korps Marinir Akan Dilengkapi Rudal Falarick 90, Inilah Daya Hancurnya |

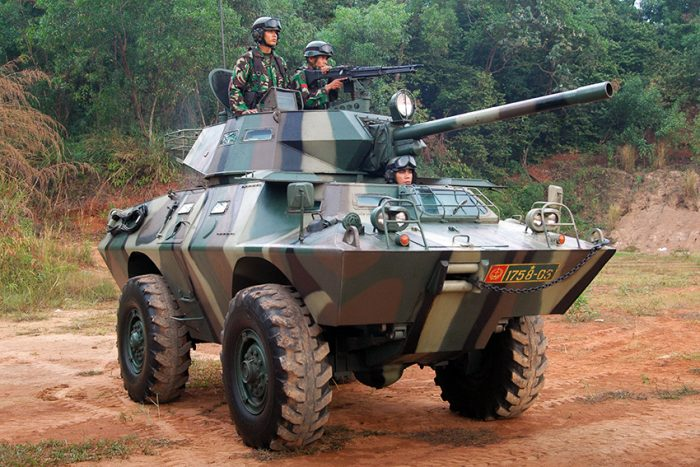

⬠ V-150 90mm MECAR (Retrofit) Description Nicknamed “The Devil's Car” by its opponents. The tank was purchased and delivered in 1974. Around 200 units of all variants were purchased, although only 58 are still in service. It is armed with the 90mm low-pressure MECAR gun capable of firing APFSDS-T, HESH, and HEAT, and HE. The vehicle is amphibious and can travel up to 80km/h even with flat tires. The tank was retrofitted by the Army Equipment Center with a switch of the engine to the Diesel V6-155 6-Cylinder four-stroke engine. The retrofit also uses an automatic Allison AT-545 transmission with 4 forward and 1 back. Although similar to the previous engine, this new one gives the vehicle better fuel consumption, range and top speed. Participated in many different military operations and Peacekeeping missions, but the vehicles are now being stationed in Papua. Specifications Weight : 9.8 tons Length : 5.69m Width : 2.26m Height : 2.54m Crew : 3 Engine : V6-155 6-Cylinder 4-stroke Diesel engine (149bhp@3300rpm) Max Speed : 90km/h Armour : 6.4mm - 12.7mm Cadalloy Steel Armaments Gun : 90mm L28 MECAR Low-pressure Gun Secondary : - 7.62mm M60 Machine gun (coax) - 7.62mm M60 or FN MAG machine gun (roof) Source - V-150 Commando - Panser Yang "Lifetime Achievement" - Cadilage Cage V-150 Mecar Gun 90mm: Mengenal Panser 'Penggebuk' Andalan YonKav 7 Pragosa Satya - Cadillac Gage Commando - Wikipedia - V-150 Commando - Si "Mobil Setan" - Commando V-150 (obrněné vozidlo) : United States of America (USA) |

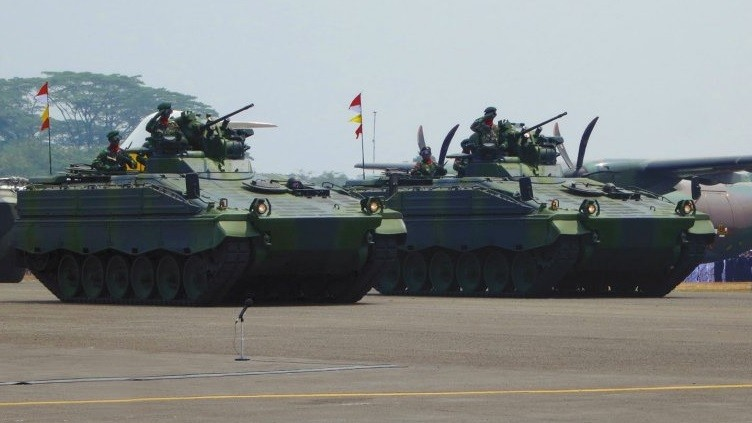

⬠ Marder 1A3 Description The first IFV that the Army obtained as the previous IFVs were all operated by the Navy. Up-armored Marder 1. The turret on the rear of the hull was removed. Around 50 were purchased in 2012 alongside the Leopard 2s with deliveries in 2014-2016. However, the MILAN missile for it was only obtained in 2016. They are currently in active service with the first Cavalry Battalion. Specifications Weight : 35 tons Length : 6.79m Width : 3.24m Height : 2.98m Crew : 3 Engine : MTU MB 833 Ea-500 diesel engine (600hp) Max Speed : 65km/h Armour : 20mm - 25mm Armaments Gun : 20mm Rheinmetall MK 20 Rh202 Autocannon Secondary : - MILAN ATGM - 1x 7.62 mm MG3A1 Machine Gun (coax) Source - Marder (pásové BVP) : Germany (DEU) - Marder 1A3 - IFV Pertama Untuk TNI AD - MBDA Milan - Kini Memperkuat Arsenal Senjata Anti Tank TNI AD |

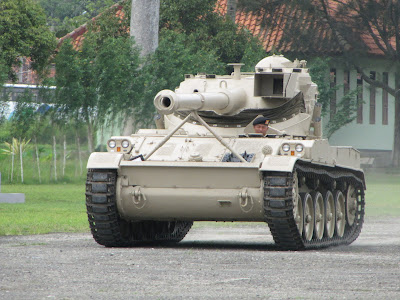

⬠ AMX-13/105-57 (SM1) Description Upgunned AMX-13 Type 2D tank with a 105mm cannon. They can be differentiated from the 75mm with their square double muzzle brake. The tank was domestically retrofitted in Bengpuspalad Central Equipment Workshop in 1995 based on the specifications of the AMX-13SM1 modernization of Singapore. It included a new Detroit Diesel 6V-53T engine and other modernization like the ZF-5WG-180 automatic transmission, new electrical system, and hydro-pneumatic "Dunlopstrut" suspension. The difference is that it is done locally and does not have the upgraded gunner sight thus cannot fire APFSDS, it can only fire HEAT, HE and smoke shells. Inherited from the Dutch and also purchased from the French, they are still being used today. Specifications Weight : 15 tons Length : 6.4m Width : 2.5m Height : 2.3m Crew : 3 Engine : Detroit Diesel 6V-53T 6-cylinder turbocharged engine (290bhp@2800rpm) Max Speed : 64km/h Armour : 9mm - 40mm Armaments Gun : 105mm CN105-57 Cannon Secondary : 2x 7.62mm FN MAG (coax and cupola) Source - AMX-13 FL-12 / AMX-13 Modèle 1958 : France (FRA) - AMX-13 Retrofit TNI AD: Tetap Andalkan Meriam dengan Kubah Osilasi |
⬠ BTR-80A Description 12 Units were obtained for the Marine Corps of the Navy. They were put into two Marines Cavalry Regiment in Surabaya and jakarta. The BTR-80s are primarily used for UN Peacekeeping missions and they are currently being used by the Indonesian Battalion in the UNIFIL mission in Lebanon. Specifications Weight : 13.6 tons Length : 7.65m Width : 2.9m Height : 2.35m Crew : 3 Engine : YaMZ-238M2 Diesel Engine (240hp) Max Speed : 80km/h Armour : 6mm - 9mm Armaments Gun : 30mm 2A72 Cannon Secondary : 1x 7.62mm PKT Machine Gun Source |

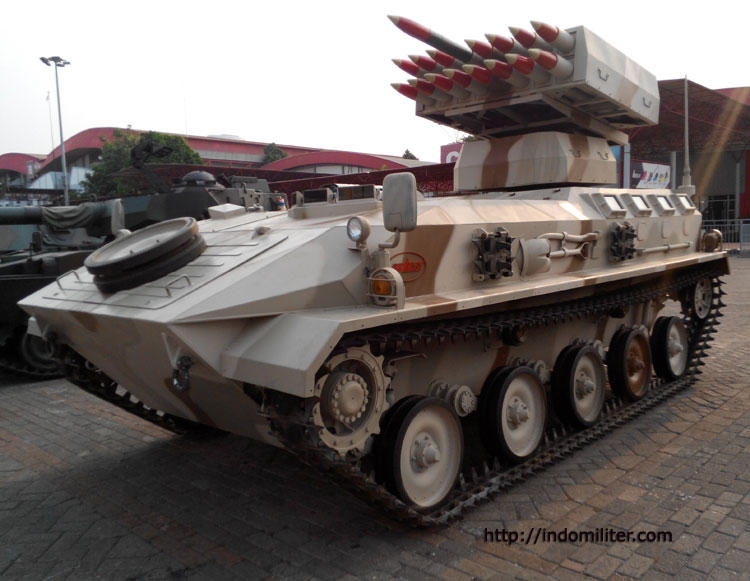

SBS MLRS (R-HAN 122mm) Description Light tank developed from the AMX-13 VCI. The only Indonesian tank with actual desert camouflage. Classified as a light tank but actually more like an APC. There are two versions, the previous one with the 20mm cannon and this version with a MLRS launcher. The rocket is called the R-HAN122A 60kg rocket that can go up to 1.8mach. The rocket was developed by a consortium of many different companies and government agencies. The SBS tank with the MLRS was originally showcased in the Indo Defence 2014. Though the development of the missile continues with the R-HAN 122B, the SBS tank itself seemingly has been discontinued/shelved. Specifications Weight : 15 tons (with MLRS system) Length : 5.68m Width : 2.77m Height : 1.97m Crew : 3-4 Engine : unknown 6-Cylinder liquid-cooled engine (250hp) (presumed to be the Hino WO6DTI) Max Speed : 70km/h Armour : 10mm Armaments Gun : 122mm R-HAN122A Artillery Rocket fitted in an MLRS System (18 rounds) Source - Pindad SBS Light Tank - Prototipe Ranpur APC dengan Peluncur MLRS - DEFENSE STUDIES: Pindad Perkenalkan Prototipe Tank APC |
Rank 6 |
Anoa PK20 (20mm) Description Anoa fitted with the PK20 turret, which is a domestic license of the South African LCT-20 turret. The tank has day/night sight and laser range finder. It was first showcased in Indo Defence 2014. The turret is fitted with the Denel 20mm Vector GI-2 autocannon, it can fire APC-T HEI, HEI-T, TP, APDS-T, APHEI, APHEIT, and TP-T. The gun has a max range of around 10km and effective range of 2km with a fire rate of around 750rpm at a speed of 1,050m/s. Specifications Weight : 14 tons Length : 5.56m Width : 2.7m Height : 2.73m Crew : 3 Engine : inline 6-cylinder diesel engine (340hp) Max Speed : 80km/h Armour : STANAG level 3 Armaments Gun : 20mm Vector GI-2 autocannon Secondary : 2x 7.62mm machine gun (coax and roof) Source - LCT20 Turret: Adopsi Kubah Kanon 20mm di Ranpur Anoa 2 6×6 |

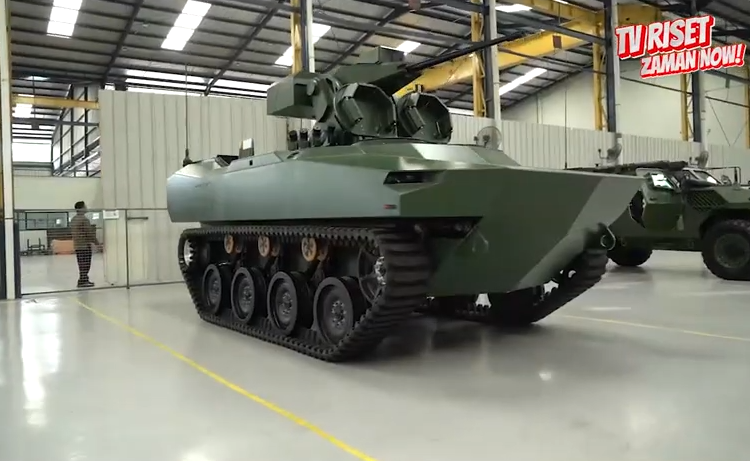

P8 Light Tank New prototype light tank made by PT.SSE, the tank model was first showcased during IndoDefence2022, with the actual prototype model unveiled in November of 2024. The tank has rubber tracks, STANAG level 2 protection, CCD day sight, 2x FOV thermal Imaging, Laser Range Finder, and Gunshot Detection. The tank is primarily designed for reconnaissance duty, with it being able to be air transported in a C-130 Hercules. The tank is also relatively small in its size, comparable to that of the amx-13. Because it's a new prototype, details regarding the specifications are quite sparse. However more details should be provided come IndoDefence 2024 (in June of 2025). Specifications Weight : ~7.5 tons Length : unknown Width : unknown Height : unknown Crew : 3 Engine : unknown hybrid engine Max Speed : 105km/h Armour : STANAG 4569 Level 2 Armaments Gun : 30mm Super Rogue Source - Ini dia P8, tank konsep persembahan perusahaan pertahanan swasta PT SSE |

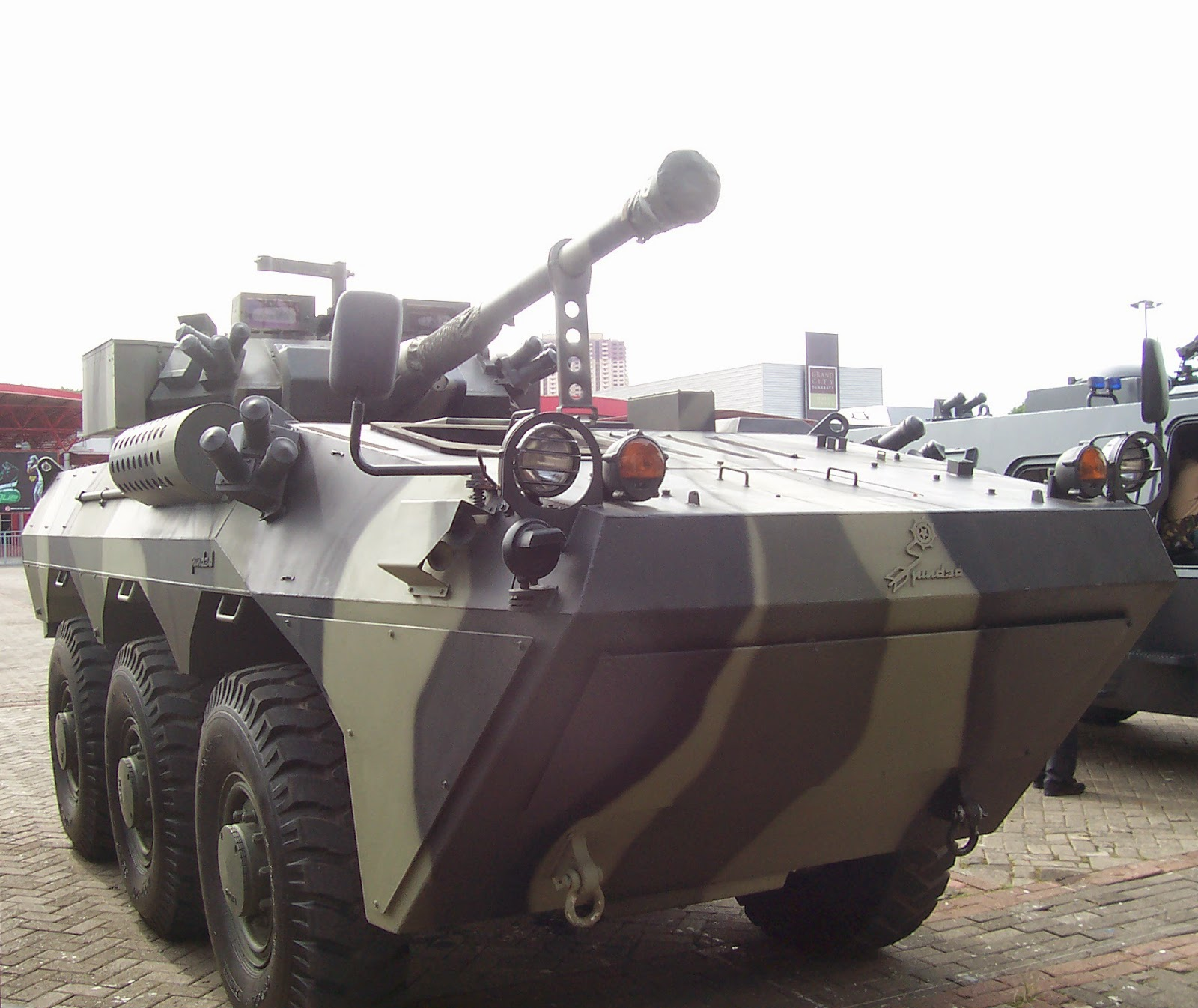

Tarantula 6x6 (90mm) Description Indonesian version of the Korean Doosan DST Black Fox. Around 22 units were obtained and operated around the 2009s. It has the CSE 90LP and the 90mm Cockerill MK3 M-A1. Unlike the Scorpions and the PT-76(M), the tank’s ammunition includes APFSDS-T alongside HEAT and HE-T. It also includes Laser Rangefinder, ballistic computer, and thermals. It has a ZF HP600 transmission with 6 forwards and 1 reverse. The tank is the main competitor to the Badak FSV. One of the units operating this tank is the Denkav 5 of Kodam XV/Pattimura in Maluku. Specifications Weight : 18 tons Length : 6.8m Width : 2.7m Height : 3m Crew : 3 Engine : DL08 6 cylinder inline diesel engine (400hp@2,200rpm) Max Speed : 100km/h Armour : 6mm-12.7mm Armaments Gun : 90mm Cockerill MK3 M-A1 cannon Secondary : 2x 7.62mm PINDAD SM2 V2 Machine gun (coax & roof) Source - Tarantula 6x6: Panser Pemukul Untuk Wilayah Perbatasan - Alami Gangguan Kemudi, Panser Tarantula 6x6 Terbalik di Ambon |

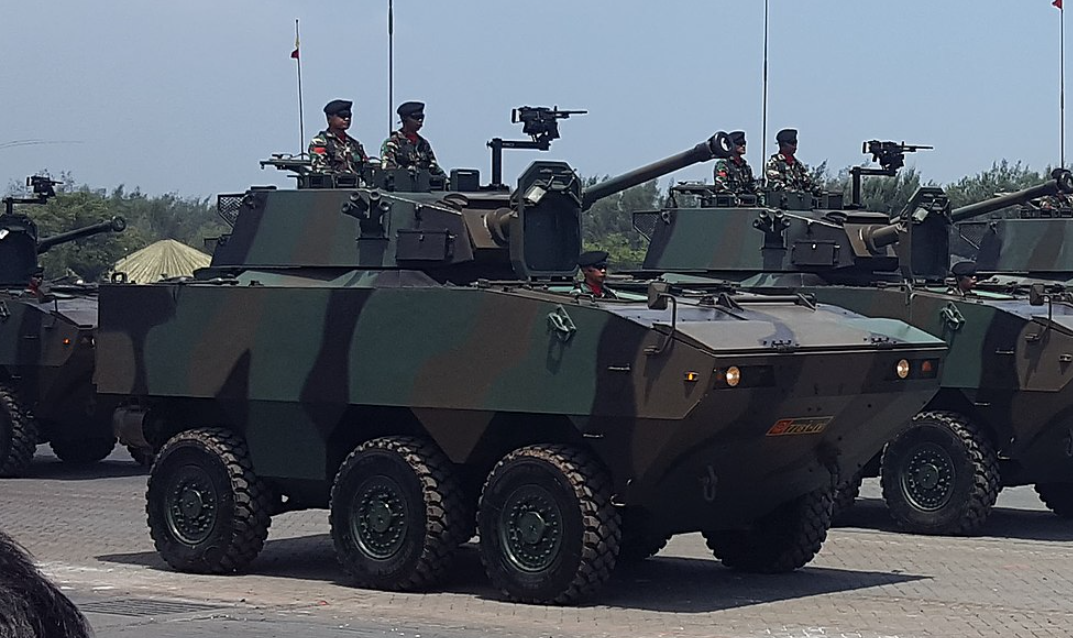

Badak FSV Description Further development of the Anoa APC as a Fire Support Vehicle with a modified hull and a different turret than the Anoa FSV as well as better armaments. Armed with the Cockerill Mk3 cannon fitted in the CSE90 LP turret. It has access to night vision, laser rangefinder, and ballistic computer. Its ammunition includes HEAT, HE and APFSDS with 100mm of RHA penetration at 60 degrees at 1km distance. The tank also has an automatic transmission with 6 forward gears and 1 reverse. Currently only around 10 are currently in-use with the Yonkavs of the Army. Specifications Weight : 11 tons Length : 6m Width : 2.5m Height : 2.9m Crew : 3 Engine : Diesel inline 6 turbocharged and intercooled engine (340hp) Max Speed : 90km/h Armour : STANAG level 3 (add on armor to STANAG level 4) Armaments Gun : 90mm Cockerill MK3 M-A1 cannon Secondary : - 7.62mm Coaxial PINDAD SM2-V2 Machine gun (license of FN MAG) - 12.7mm roof mounted PINDAD SM5 Machine gun (license of CIS 50MG) or - 7.62mm roof mounted PINDAD SM2-V2 Machine gun Source - Badak 6×6: Generasi Armoured Fire Support Vehicle Terbaru PT Pindad - CIS 50MG - Senapan Mesin Berat 'Serbu' Kopassus dan Kostrad TNI AD |
Yonkav 2 (Prototype) Description The test-bed for the production Yonkav 2 presumably with the upgrades based on the SK105A2. At this stage it still has the old AMX-13/105-57 (SM1) turret and hull but with the upgraded CN105-G1 gun and what seems to be a fire-control system in the front left of the turret similar to the SK105A2. This prototype was showcased in 2011, and this vehicle served as the basis for the Yonkav 2 Production and the AMX-13/105-G1 (SM1). Specifications Weight : 15 tons Length : 6.4m Width : 2.5m Height : 2.3m Crew : 3 Engine : Detroit Diesel 6V-53T 6-cylinder turbocharged engine (290bhp@2800rpm) Max Speed : 64km/h Armour : 9mm - 40mm Armaments Gun : 105mm CN105-G1 cannon Secondary : 2x 7.62mm M60 or 7.62mm PINDAD SM2-V2 Machine gun (coax and roof) Source - Robinson, M. P., Lau, P., & Gibeau, G. (2017). The AMX 13 Light Tank: A Complete History. Pen & Sword Military. |
Yonkav 2 (Production) Description Final production version of the AMX-13/105 Retrofit (Yonkav 2). A modernization program for the AMX-13/105s Mle 58s It has a reworked hull and a new JT-1 turret of the SK105 and a new CN105 G1 cannon capable of firing APFSDS. The tank is only armed with APFSDS and HE. The tank has a day camera, thermals, and laser rangefinder. The Fire Control system is situated inside the box above the first-stage ammo stowage. The production tank was completed in early 2014, and firing trials follows soon after. The first 13 tanks were delivered to Yonkav 2/Tank Cavalry Battalion on October the same year. Specifications Weight : 14 tons Length : 6.56m Width : 2.5m Height : 2.35m Crew : 3 Engine : Unknown, either a Navistar Maxxforce 400hp engine or a cummins 375hp engine Max Speed : 60-70km/h Armour : 10mm - 40mm RHA & CHA Armaments Gun : 105mm CN105-G1 cannon Secondary : 2x 7.62mm M60 or 7.62mm PINDAD SM2-V2 Machine gun (coax and roof) Source - Robinson, M. P., Lau, P., & Gibeau, G. (2017). The AMX 13 Light Tank: A Complete History. Pen & Sword Military. - Intip Langsung AMX-13 Retrofit TNI AD, Tank Tua yang Masih Perkasa - AMX-13 Retrofit Pindad itu Mulai Berjalan | Web Archive - Blaar! Dan Tank Retrofit itu pun Mengaum | Web Archive - CN105G1 |

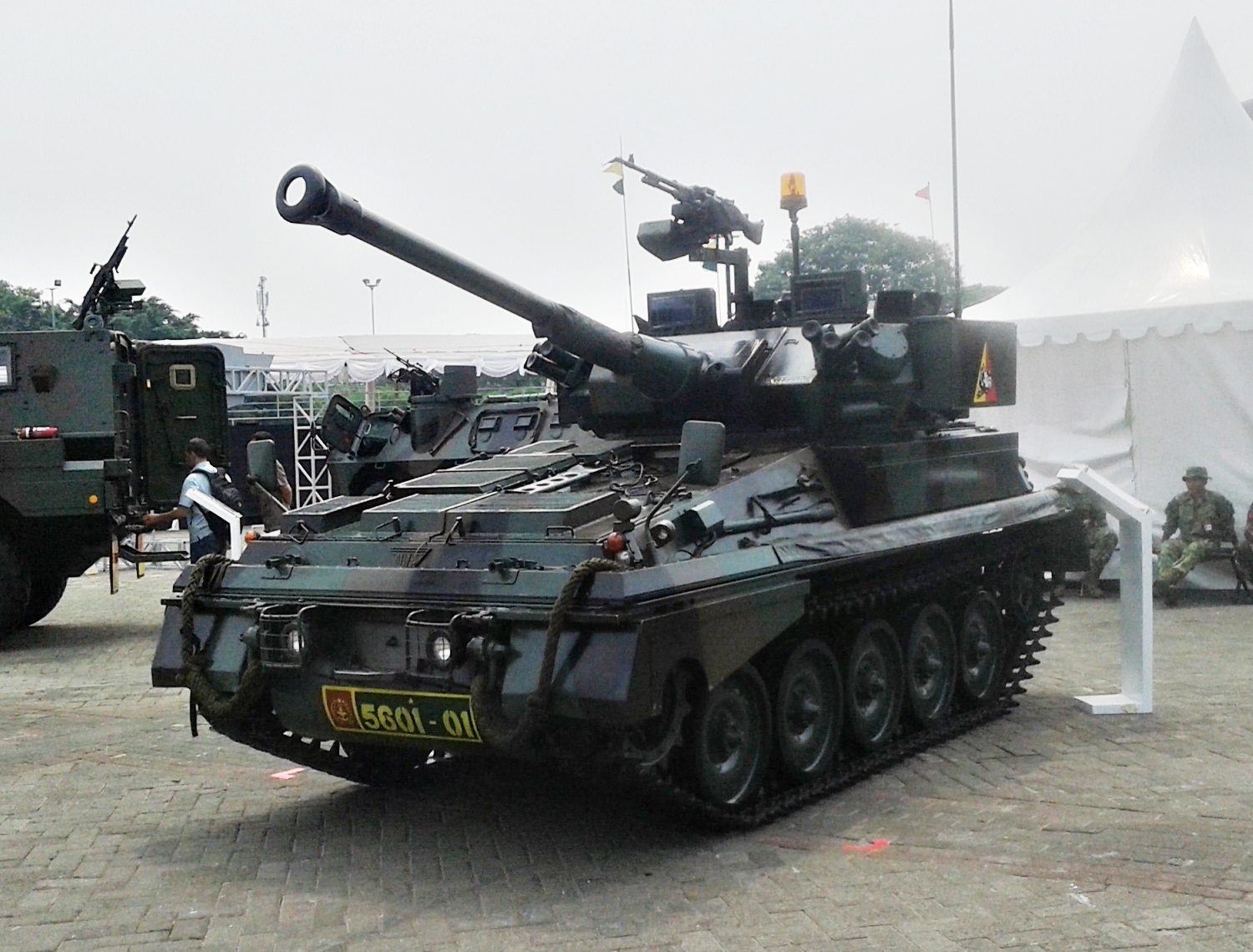

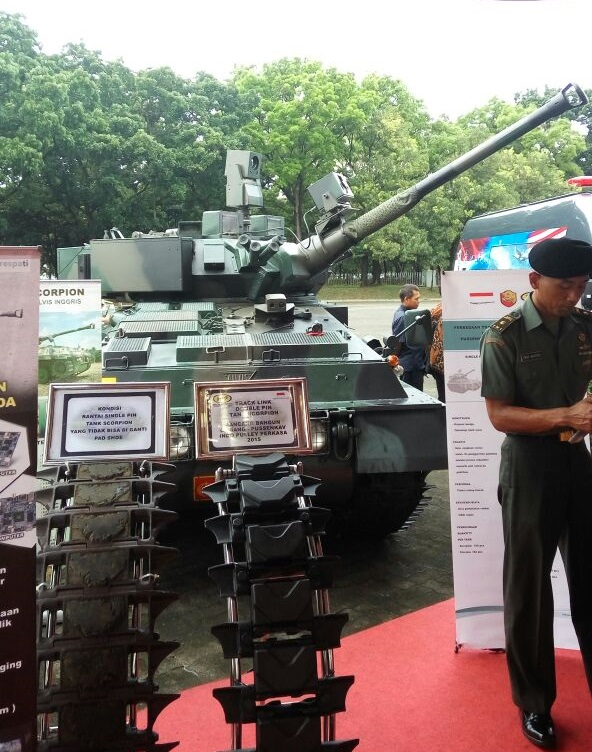

⬠ FV101 Scorpion 90 (Pussenkav Retrofit) Description Alvis Scorpion 90 with an upgraded fire control system and modern tracks. Originally arrived in the New Order era of 1995-1999, this retrofit was done by Pussenkav (Cavalry Armament Centre) in order to modernize the fire control system of the vehicle. The tank was fitted with more modern rubber tracks for easier maintenance, also its sight was upgraded with latest gen thermals and it received a ballistic computer, giving the gun a longer engagement distance. But even with its upgraded fire control system, it can only fire its original armament of HE, HEAT, HESH and Smoke. There are currently 90 tanks still being operated and they’re stationed in the infantry divisions of Yonkav 8 and Yonkav 1. Specifications Weight : 8 tons Length : 5.2m Width : 2.1m Height : 2.2m Crew : 3 Engine : Cummins diesel BTA 5.9 litre engine (190hp) Max Speed : 80km/h Armour : 13mm Armaments Gun : 90mm Cockerill MK3 M-A1 cannon Secondary : 2x 7.62 FN MAG Machine gun (coax and roof) Source - Alvis Scorpion 90 - Little "MBT" Kavaleri Indonesia - Memasuki Usia 22 Tahun, Pussenkav TNI AD Pamerkan Retrofit Tank Scorpion 90 |

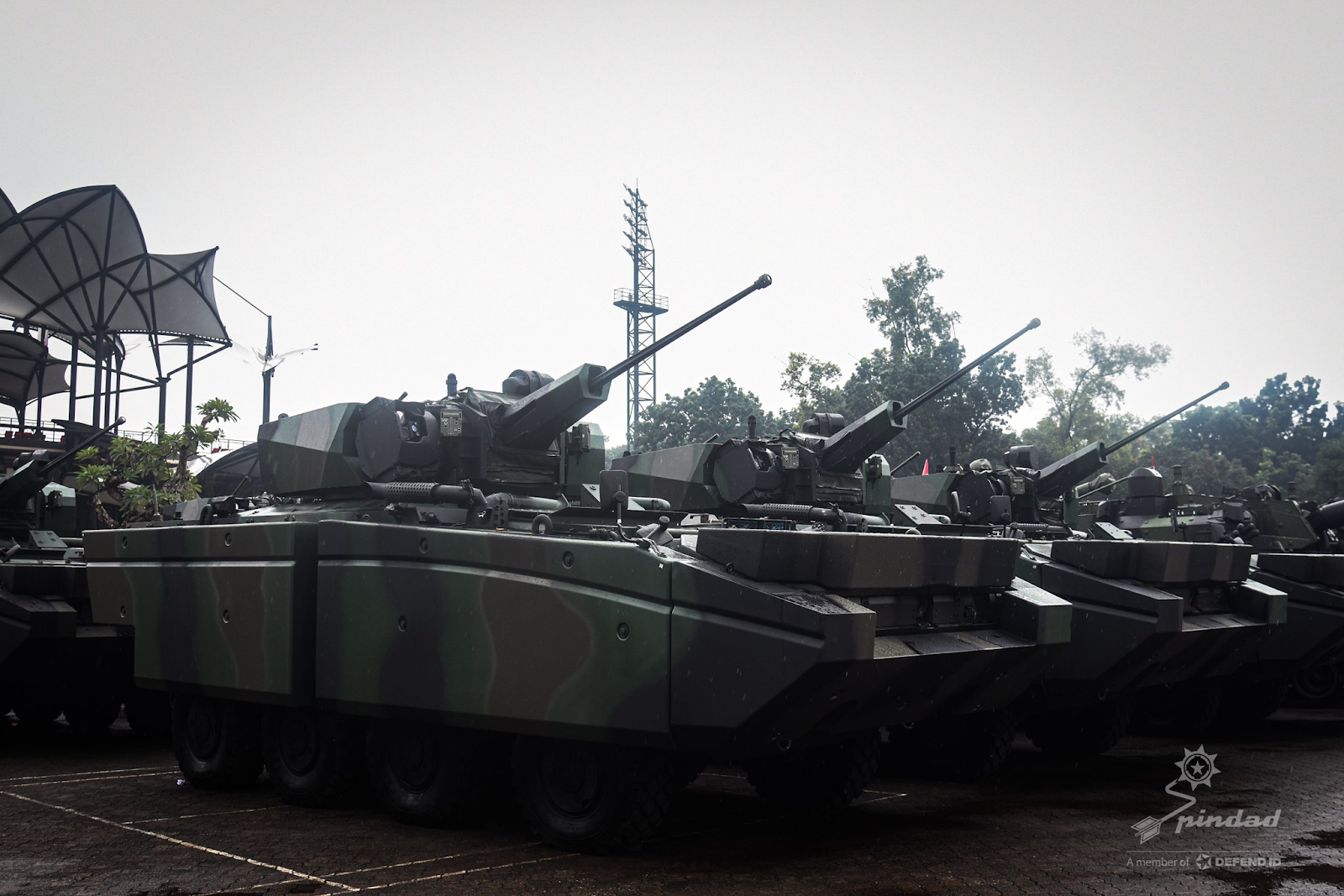

Cobra 8x8 IFV (30mm) Description Domestically-made tropical variant of the Pandur II 8x8 built by PT PINDAD in collaboration with Excalibur Army. The modifications include AC system, anti humid and anti corrosion paint, and a change of the air-cooled into a water-cooled one. Unlike the turretless variant, the 30mm and the 105mm cannot float, so it is fitted with floating kits so that the vehicle can be amphibious again. It has an Orbital ATK 30mm bushmaster that can fire air-burst munition and is fitted in the Ares UT30MK2 turret. The turret is equipped with a battlefield management system, and laser warning system. The turret can be set for manned or unmanned controls. They were first revealed in the Independence day defile in 2017 and there are currently 15 units operated by the Army. Specifications Weight : 17 tons (22 tons with added protection) Length : 7.8m Width : 3.3m Height : 3.4m Crew : 2 - 3 Engine : Turbo Intercooler Common rail diesel engine (455hp) Max Speed : 105km/h Armour : STANAG level 1, add-on armor to STANAG level 3 Armaments Gun : 30mm Orbital ATK MK44 Bushmaster II ABM (air-burst munition) gun Secondary : 7.62mm coaxial machine gun Source - Telah Bersiap di Cilegon, Inilah Tampilan Pandur II 8×8 dengan Kanon RCWS Ares UT30MK2 - Kemhan Order Pindad Cobra 8x8, Varian dari Panser Tempur Pandur II 8x8 IFV - Ares UT30MK2 – Turret RCWS 30mm di Panser Pandur II 8×8 IFV TNI AD - Индонезийская бронетанковая техника на выставке Indo Defense 2018. Часть 1 |

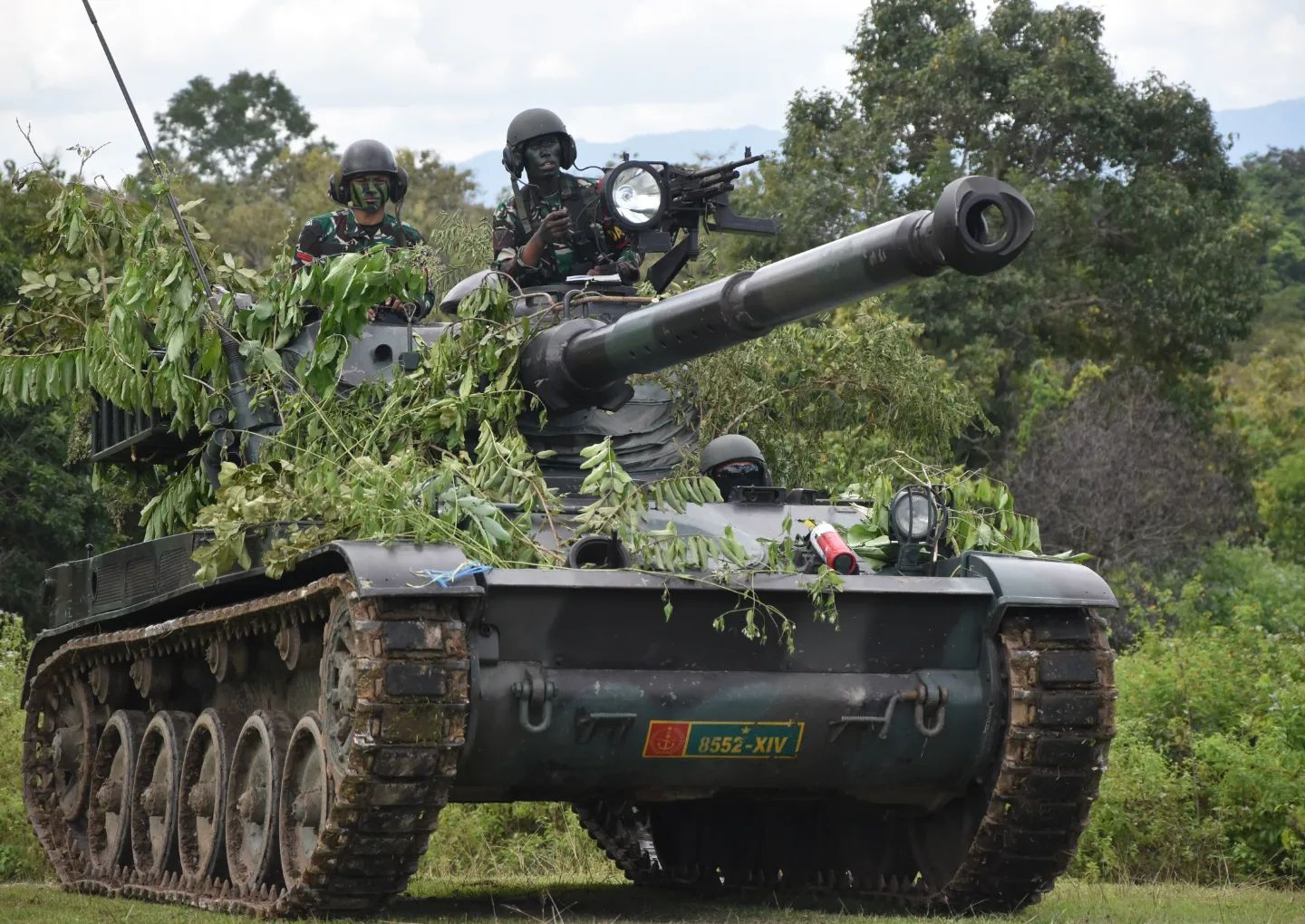

⬠ AMX-13/105-G1 (SM1) Description AMX-13/105 with a switch of cannon from the CN105-57 to the upgraded CN105-G1 making the tank capable of firing APFSDS. The tank was domestically retrofitted in Bengpuspalad Central Equipment Workshop in 1995 based on the specifications of the AMX-13SM1 modernization of Singapore. It included a new Detroit Diesel 6V-53T engine and other modernization like the ZF-5WG-180 automatic transmission, new electrical system, and hydro-pneumatic "Dunlopstrut" suspension. Currently, the older AMX-13/105-57s are in the process of being replaced by the Yonkav 2 or being upgunned to the AMX-13/105-G1 variant. Specifications Weight : 15 tons Length : 6.4m Width : 2.5m Height : 2.3m Crew : 3 Engine : Detroit Diesel 6V-53T 6-cylinder turbocharged engine (290bhp@2800rpm) Max Speed : 64km/h Armour : 9mm - 40mm Armaments Gun : 105mm CN105-G1 cannon Secondary : 2x 7.62mm FN MAG (coax and cupola) Source - AMX-13 FL-12 / AMX-13 Modèle 1958 : France (FRA) - AMX-13 Retrofit TNI AD: Tetap Andalkan Meriam dengan Kubah Osilasi |
⬠ AMX-10P PAC-90 Description The AMX-10P arrived in the 1980s. Around 80 units were obtained. IT is armed with the GIAT CS-90F-90 mm cannon fitted in the TS-90 turret, the same turret found on the Panhard ERC-90. The ammunition includes 30 rounds including HEAT, HE-FRAG, APFSDS, and/or smoke shells. The tank is rarely mentioned or used in missions because according to the Marine Corps it is not up to standard with a handful of issues. Even though this variant has improved amphibious capabilities, they were not used in amphibious activities and only used in dry operations by the Marine Corps because of the vehicle’s tendency to flip over. Specifications Weight : 14.5 tons Length : 5.87m Width : 2.83m Height : 2.73m Crew : 3 Engine : Hispano Suiza HS 115 multi fuel diesel engine (280hp) Max Speed : 65km/h (2km/h on sea) Armour : 14.5mm Armaments Gun : 90mm CS-90F-4 GIAT cannon Secondary : 7.62mm AAT-F1 Machine gun (coax) Source - AMX-10 PAC 90: Amphibious Fire Support Vehicle Korps Marinir TNI AL dari Era 80-an - AAT-F1 Korps Marinir: Senapan Mesin Handal, Sukses Lepaskan 5 Ribu Butir Munisi Tanpa Masalah |
BTR-4M Parus Description Indonesian specific variant for the BTR-4 with improved sea capabilities and optimized for tropical weather. This variant can be identified by the floating kits that are installed on the front and side of the hull.5 vehicles were originally obtained in 2016 with two variants, one being the Parus turret and another with only a 7.62mm gun. The Parus turret is equipped with the 30mm ZTM-1 autocannon (Ukrainian version of the 2a72), 7.62mm PKT coax machine gun, 30mm AGS-17 grenade launcher, and 2x Baryer anti-tank missile. Although from the photos the missile is rarely put on the vehicle. Originally planned for the purchase of 60 vehicles, but the rest was canceled after unsatisfactory maritime performance with water leakage and slow top-speed in water. Specifications Weight : 17.5 tons Length : 7.87m Width : 2.96m Height : 3.05m Crew : 3 Engine : Deutz Euro III four-stroke diesel engine (598hp) Max Speed : 110km/h Armour : Unknown, most likely STANAG level 2-3 Armaments Gun : 30mm ZTM-1 autocannon Secondary : - 1x 7.62mm PKT Machine Gun (coax) - 2x Baryer Anti-Tank Missile - 1x 30mm AGS-17 Grenade Launcher Source - DEFENSE STUDIES: Evaluasi Kendaraan BTR-4M Korps Marinir - Meski Pengadaan Lanjutan Belum Jelas, Kondisi BTR-4M Korps Marinir Terawat Baik - Gelombang Pertama BTR-4M Tiba di Indonesia - Korps Marinir Gelar Uji Fungsi dan Pelatihan Awak Ranpur BTR-4M |

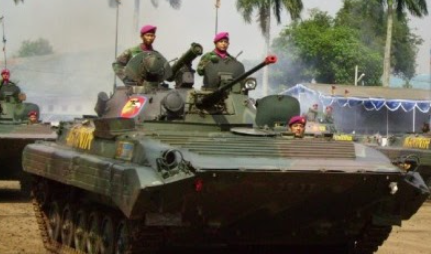

⬠ BVP-2 Description Czechoslovakian-made BMP-2. They were bought from Ukraine and Slovakia in around 1998. Around 20-40 units were obtained. The tank is assigned as Anti-Air by the Marine Corps and was assigned to the Air Defense Artillery unit and still in-used today. They were used in many conflicts, such as the Maluku sectarian conflict and the Aceh Insurgency. Specifications Weight : 14.3 tons Length : 6.73 m Width : 3.15 m Height : 2.45 m Crew : 3 Engine : 300 hp Type UTD-20 6-cylinder diesel engine Max Speed : 65km/h Armour : 5mm - 19mm Armaments Gun : 30mm 2A42 Autocannon Secondary : - 1x 7.62mm PKT Machine Gun - 9M113 Konkurs SACLOS ATGM (on turret) Source - IFV BVP-2 Korps Marinir: Sangar dan Battle Proven - CZK - BVP-2 : Czechoslovakia / Czech Republic / Slovak Republic (CZK/CZE/SVK) - BVP-2 - Mengenal Kemampuan Senapan Mesin PKT di Ranpur BVP-2 Korps Marinir |

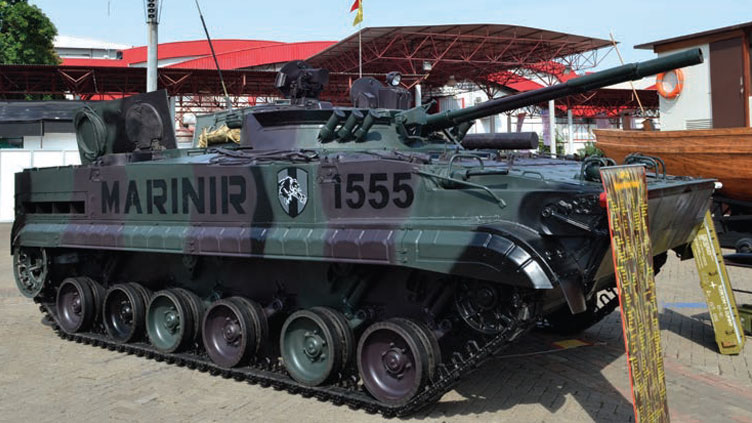

⬠ BMP-3F Description BMP-3 with modifications for operating at sea. The buoyancy was improved with increased floatation and stability, removal of the entrenching tool and the addition of an anti-surge vane as well as an air intake tube. The BMP-3F is also fitted with the SOZH sight with integrated laser rangefinder with day and night sight. Around 17 were initially purchased, currently around 54 units are being operated with another 22 units being purchased in 2019 Specifications Weight : 18.7 tons Length : 7.14m Width : 3m Height : 2.4m Crew : 3 Engine : UTD-29M diesel (500hp) Max Speed : 70km/h Armour : Armaments Gun : 30mm 2A72 Cannon Secondary : - 100mm 2170 Cannon (only fires 9M117M1 Arkan) - 7.62 mm PKT machine gun (coax) Source - BMP-3F: Tank Amfibi “Kelas Berat” TNI-AL - Sozh Aiming System - Mengenal Teknologi Pembidik Sasaran di Ranpur BMP-3F Korps Marinir - Infantry Fighting Vehicle (IFV) BMP-3F | Catalog Rosoboronexport |
Badak Skyranger Description Mockup of the Skyranger turret fitted on the Badak FSV chassis. The turret was meant to be the actual skyranger turret but they decided to weld a fake turret instead. The tank was showcased in Indodefence 2022. It is a collaboration between Rheinmetall and PT PINDAD. The skyranger turret is fitted with an AESA radar, 2 SHORAD missile launchers, IRST and IR scanners. The skyranger turret is similar to the ones the Indonesian already have, the skyshield. It can fire a multitude of ammunition including AHEAD and APDS. Specifications Weight : 13.5 tons (with skyranger) Length : 6m Width : 2.5m Height : 2.9m Crew : 3 Engine : Diesel inline 6 turbocharged and intercooled engine (340hp) Max Speed : 90km/h Armour : STANAG level 3 Armaments Gun : 35mm Oerlikon Revolver Gun MK3 Secondary : 7.62mm coaxial machine gun Source - Ranpur Badak 6×6 dengan Rheinmetall Skyranger di Indo Defence 2022 - Indo Defence 2022: Rheinmetall offers local production of Skyranger GBAD system for Indonesia - Pindad perkenalkan Badak 6X6 SPAAG di Indo Defence 2022 - Badak 6×6: Generasi Armoured Fire Support Vehicle Terbaru PT Pindad |
Rank 7 |
Cobra 8x8 (CT-CV105) Description Fire Support version of the Cobra/Pandur 8x8 fitted with the CT-CV105 turret. Unlike the IFV variant this one is not fitted with the float kits because it's not meant for amphibious operations. Its ammunition includes M1060CV APFSDS, Falarick ATGM, M1061 HEAT, M393A3 HESH, as well as smoke shells. The turret has gyro stabilizer and FCS with ballistic computers. The barrel also has a bore excavator and thermal jacket. They were first revealed in the Independence day defile in 2017 and there are currently 15 units operated by the Army. Specifications Weight : max 22.6 tons Length : 7.8m Width : 3.3m Height : 3.4m Crew : 2 - 3 Engine : Turbo Intercooler Common rail diesel engine (455hp) Max Speed : 80km/h Armour : STANAG level 1, add-on armor to STANAG level 3 Armaments Gun : 105mm Cockerill CT-CV L/51 cannon Secondary : - 1x 7.62mm Roof-mounted machine gun - 1x 7.62mm or 12.7mm Coaxial machine gun Source - Kemhan Order Pindad Cobra 8x8, Varian dari Panser Tempur Pandur II 8x8 IFV - Индонезийская бронетанковая техника на выставке Indo Defense 2018. Часть 1 |
Harimau MT (Prototype) Description Collaboration project between Indonesian PT PINDAD and Turkish FNSS. This specific version is of the 2017 prototype before the production model improvements and hull reworks. The easiest way to tell the difference is that for the older pre-production version, the seam between the upper and lower glacis is rounded, as well as the upper glacis’s shallower angle and that there are no hump on the upper glacis for the better viewports. The tank was showcased in the 2017 Armed Forces parade. The tank uses a Cockerill 3105 turret with LRF and thermals, the same that can be found on the CT-CV105HP turret. It can fire HEAT, HESH, APFSDS, and Falarick 105mm ATGM. Specifications Weight : 30-35 tons Length : 9.1m Width : 3.4m Height : 2.5m Crew : 3 Engine : Caterpillar C13 diesel engine (711hp) Max Speed : 70km/h (can go to 78km/h on road) Armour : STANAG level 4 on hull, level 5 on turret Armaments Gun : 105mm Cockerill HP Gun Secondary : 2x 7.62mm PINDAD SM2 V2 Machine gun (coax and roof) Source - Produksi Medium Tank Harimau, PT Pindad Persiapkan Pengadaan 18 Meriam Cockerill 3105 - Kaplan MT / Harimau - Wikipedia - Tank "Harimau Hitam" Siap Jalani Uji Kualifikasi oleh TNI AD |

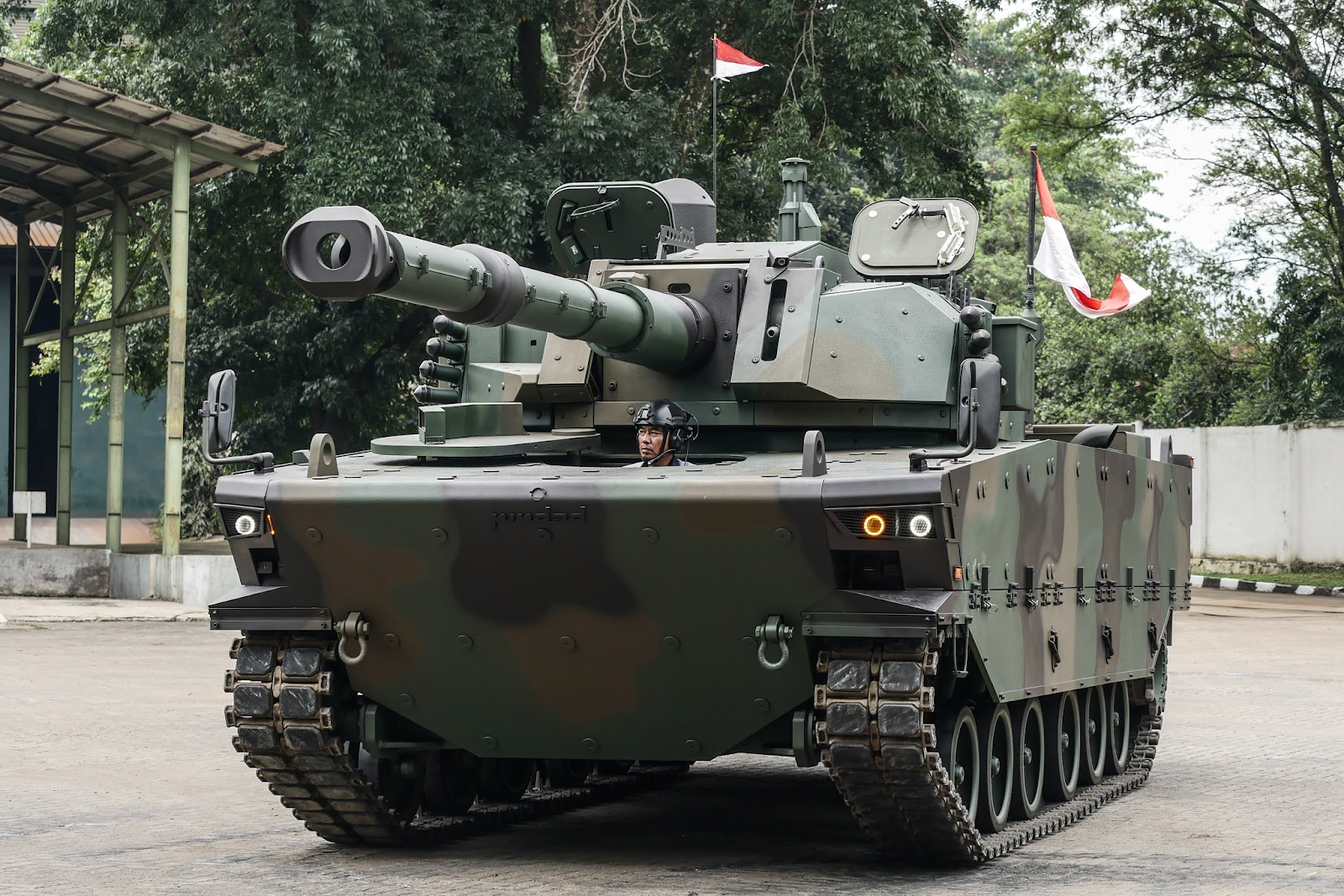

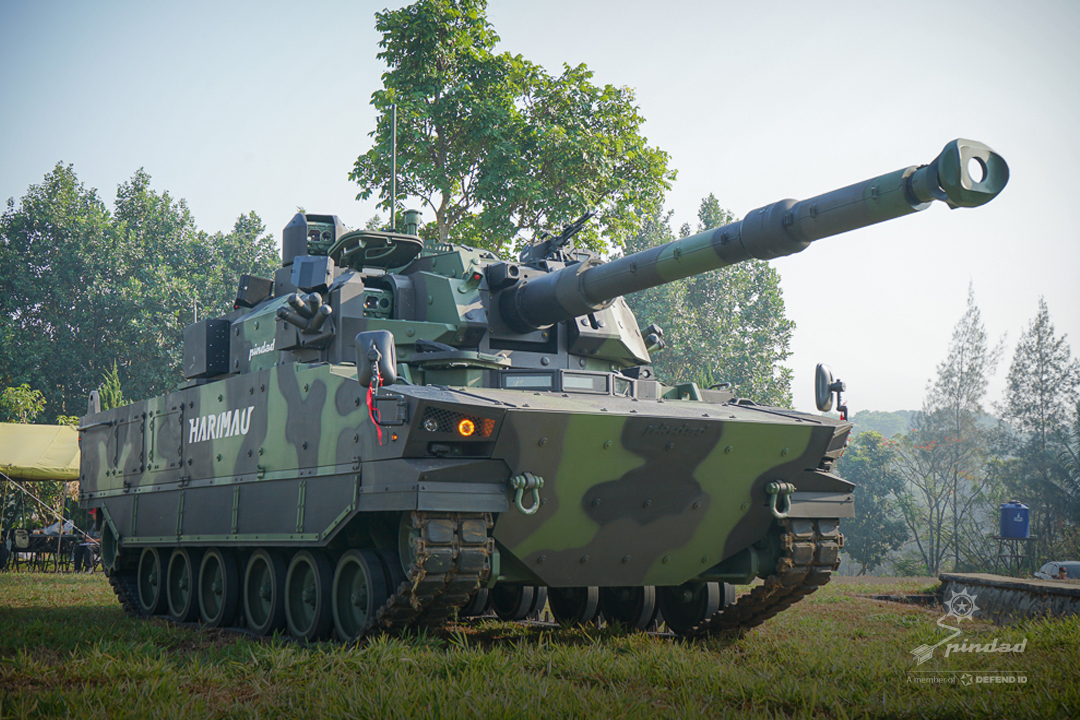

Harimau MT (Production) Description The production version of the Harimau MT. There were many improvements made in 2021 from the prototype to the production model. This includes a reworked hull. with better viewports and periscopes and a sharper edge between the upper and lower glacis to improve the driver’s visibility, reworked upper glacis angle so that it tapers downwards, giving the gun more depression, improvement to the ergonomics, and other improvements such as the power transmission, cooling, and suspension. Armament is still the same as the prototype. As of 2024, around 10 units are currently in service with more in the future. Specifications Weight : 30-35 tons Length : 9.1m Width : 3.4m Height : 2.5m Crew : 3 Engine : Caterpillar C13 diesel engine (711hp) Max Speed : 70km/h (can go to 78km/h on road) Armour : STANAG level 4 on hull, level 5 on turret Armaments Gun : 105mm Cockerill HP Gun Secondary : 2x 7.62mm PINDAD SM2 V2 Machine gun (coax and roof) Source - Produksi Medium Tank Harimau, PT Pindad Persiapkan Pengadaan 18 Meriam Cockerill 3105 - FNSS Rilis Desain Upgrade Medium Tank Kaplan MT (Harimau) - Kaplan MT / Harimau - Wikipedia - Tank "Harimau Hitam" Siap Jalani Uji Kualifikasi oleh TNI AD |
Leopard 2A4+ Description Refurbished Panzer 87 with upgrades for the Indonesian Army. Most of the pz87 specific details were removed, but the tank received the same upgrade as the Leopard 2RI, just without the additional AMAP armor package. The Leopard 2a4+ features an electric turret drive rather than a hydraulic one as well as an AC unit. The gun brake was also improved making the tank capable of firing current gen APFSDS munitions. The fire control system is also upgraded to allow programmable ammunition. Its ammunition includes DM11 HE-TF and DM53 APFSDS. Additionally, Nexter will provide SHARD APFSDS and HE shell for the tank in the near future. Around 103 vehicles are in service. They were initially purchased in 2012 and delivered in around 2016 with 42 Leopard 2a4+ and another 61 being upgraded to the Leopard 2RI standard. Specifications Weight : 55 tons Length : ≈ 9.7m Width : ≈ 3.7m Height : ≈ 2.5m Crew : 4 Engine : MTU MB-837 Ka501 diesel engine (1500hp) Max Speed : ≈ 70km/h Armour : up to 800mm Armaments Gun : 120mm Rheinmetall L/44 Smoothbore gun Secondary : - 1x 7.62mm Coaxial Machine gun (FN MAG or M240C/D) - 1x 12.7mm or 7.62mm Roof mounted Machine gun Source - Leopard 2 MBT Revolution by Rheinmetall | Leopard 2A4 Upgrade - MBT Leopard 2A4 Indonesia Akan Dilengkapi Munisi Nexter SHARD 120 APFSDS - Gunakan 4 Jenis Munisi, 9 MBT Leopard Yonkav 1 Jalani Boresighting dan Zeroing - Close Up! Konfigurasi Awak Ranpur MBT Leopard 2Ri TNI AD - Rheinmetall L/44 120mm: Senjata Pamungkas MBT Leopard 2A4 Revolution TNI AD - Swiss Pz 87 Leopard 2 Tank | Full vehicle details |

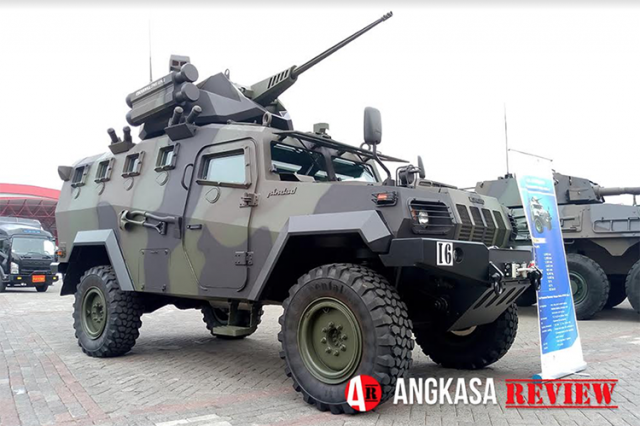

Komodo 4x4 CPWS gen.2 Description During Indo Defence 2018, a Pindad Komodo 4x4 was revealed on the 2nd day featuring the Cockerill SPWS Gen.2 Turret equipped with a 25mm M242 Bushmaster as well as 2 100mm Alcotán-100 un-guided anti-tank missiles. This vehicle features improved crew survivability by allowing the crew to reload the main gun from the inside of the vehicle as well as the ability to equip the 25mm M242 Chain Gun, a 30mm M230LF Chain Gun, as well as a variety of ATGM’s depending on the ordering country’s needs. As of now, there are no Komodo’s equipped with the CPWS Gen. 2 in service, however are available for purchase through PT Pindad and John Cockerill Defense. The vehicle is fitted with a laser rangefinder, night vision, 3rd gen thermals, Laser Warning System, and protected up to stanag level 3 with smoke protection across the vehicle Specifications Weight : ≈10.5 tons Length : 5.9m Width : 2.3m Height : 2.5m Crew : 3 Engine : Renault Inline 6-Cylinder turbo charged diesel engine (215hp) Max Speed : 70-80km/h Armour : STANAG level 3 Armaments Gun : 25mm M242 Bushmaster Autocannon Secondary : - 7.62mm coaxial machine gun - 2x Alcotán-100 ATGM Source - Indo Defence 2018: Pindad Komodo 4×4 Tampil dengan Kubah Kanon CPWS 25-30mm - Tampil Perdana, Komodo Pindad Berkubah Senjata CPWS Gen.2 - IndoDefence 2018: PT Pindad and CMI Defense Unveil Komodo with CPWS Gen 2 | Web Archive - Cockerill® CPWS Gen.2 | Web Archive |
Komodo 4x4 Mistral Atlas Description PINDAD Komodo 4x4 with the Mistral Atlas SHORAD launchers. The vehicle uses a rigid portal axle with bushing arm suspension and coil spring - telescopic shock absorber anti rolling bar. The Mistral Atlas variant unlike other Komodo 4x4s uses a manual transmission rather than an automatic one. One unfortunate drawback of the design is the gunner must operate the launcher out in the open. The spare missiles are stored under the gunner on the rear of the vehicle. Unlike the Simbad launcher the Atlas has a seat for the gunner. It has thermals and IFF and can be used alone without supporting vehicles. The vehicle was originally showcased in 2012, and they’re currently serving with the Air Defence Artillery Battalion 10 and 2 of Kodam Jaya and Kostrad respectively. Specifications Weight : 7.5 tons (empty) Length : 6.3m Width : 2.3m Height : 2.4m Crew : 4 Engine : Renault inline 4 cylinder Turbocharger with Intercooler diesel engine (215 HP) Max Speed : 80km/h Armour : STANAG level 3 Armaments Gun : 2x Mistral F3 Missile mounted on the ATLAS Vehicle Mount Source - PT. Pindad (Persero) - Komodo 4x4 Missile Launcher - Pindad Komodo 4×4 Missile Launcher: Lebih Dekat dengan Sang Pembawa Mistral Atlas - Mistral Atlas TNI AD - Rudal Hanud Dengan Mobilitas Tinggi - MISTRAL ATLAS | Ground Based Air Defence, MISTRAL SYSTEMS & LAUNCHERS | MBDA |

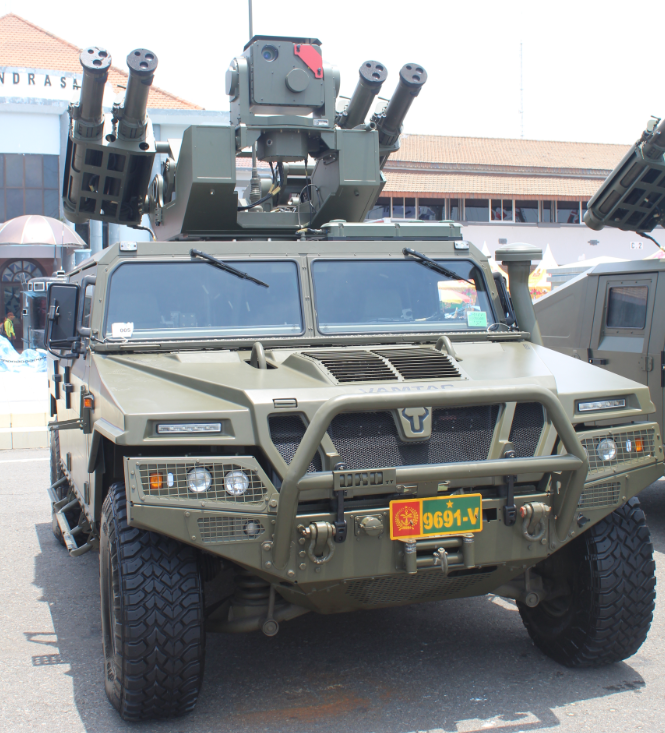

⬠ VAMTAC ST5 RapidRanger MMS Description Rapidranger MMS missile platform mounted on the URO VAMTAC ST5 armored vehicle as part of the Thales ForceSHIELD air defence. It has 5 forward gears and 1 reverse and can go up to 135km/h. It can fire both the Starstreak or the Martlet missile. The Martlet can go up to mach 1.5 whereas the Starstreak can go up to mach 4. The launcher has the latest thermal imager and daylight TV camera with automatic target tracking. It has a detection range of over 15km and a missile range of over 7km. The air defence system was purchased in 2016 along with additional radar vehicles and around 40 units are currently in service. Specifications Weight : 3 - 3.5 tons Length : 4.85m Width : 2.17m Height : 1.9m Crew : 3-4 Engine : Steyr 6-cylinder turbocharged diesel engine (188hp) Max Speed : 135km/h Armour : STANAG level 2/3 Armaments Gun : 4x Starstreak or Martlet missile mounted on the Rapidranger missile platform Source - URO Vamtac (RAPIDRanger MMS): The Indonesia ForceShield - Ground - War Thunder — official forum - VAMTAC ST5 4×4 RAPIDRanger: Rantis Pengusung Rudal Starstreak RCWS Arhanud TNI AD - Starstreak HVM: Rudal Tercepat Arhanud TNI AD - Arhanud TNI AD Tampilkan Rudal MANPADS Martlet, Diperkenalkan ke Unit Infanteri Raider - Korps Marinir Berpotensi Gunakan Rudal Starstreak dan Martlet, Ikuti Jejak Arhanud TNI AD? - Mengenal URO VAMTAC ST5, Rantis Pengusung Rudal Starstreak Arhanud TNI AD |

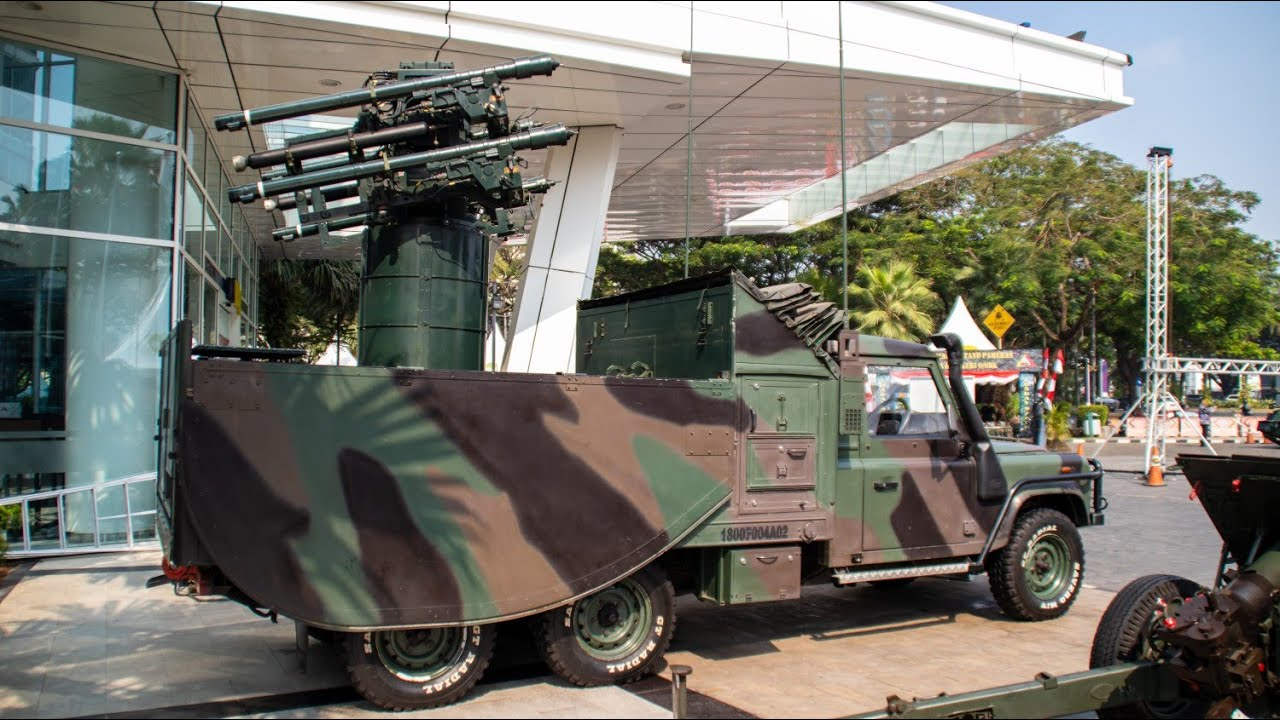

Huzar 6x6 GROM POPRAD Description GROM missiles mounted on a modified Huzar based on the chassis of the Land Rover Defender 130. Although it's usually supported by a Battery Command Vehicle, the vehicle itself can operate independently with two crews. The GROM missile has a length of around 1500 mm with a diameter of around 70mm. It has a weight of 10.5kg and can fire at a speed of 650m/s. Vertical range is about 4000m while horizontal range is about 5500 meters. They are equipped with FLIR, automatic target tracking, and electro optical sensor with thermals and laser range finder as well as IFF identification. Although still in use, their roles have been primarily replaced by the Mistrals and Starstreaks due to errors in regards to the missile’s guiding system in warmer climates. The vehicles were originally trialed in 2007, and are still being used today, they participated in live-fire exercises as recently as 2017. Specifications Weight : ≈ 5 tons Length : 6.1m Width : ≈ 1.7- 2.2m Height : ≈ 3 - 4m Crew : 2 Engine : Land Rover Td5 2.5 Litre Diesel engine (120hp) Max Speed : 120km/h Armour : unknown, most likely none Armaments Gun : 4x PPZR GROM missile mounted on four POPRAD launchers Source - Grom: Rudal Utama Arhanud TNI AD - Poprad (self-propelled anti-aircraft missile system) - Wikipedia - Lama Tak Terdengar Kabar, Rudal Grom Kembali Diuji Tembak di Pantai Sekerat |

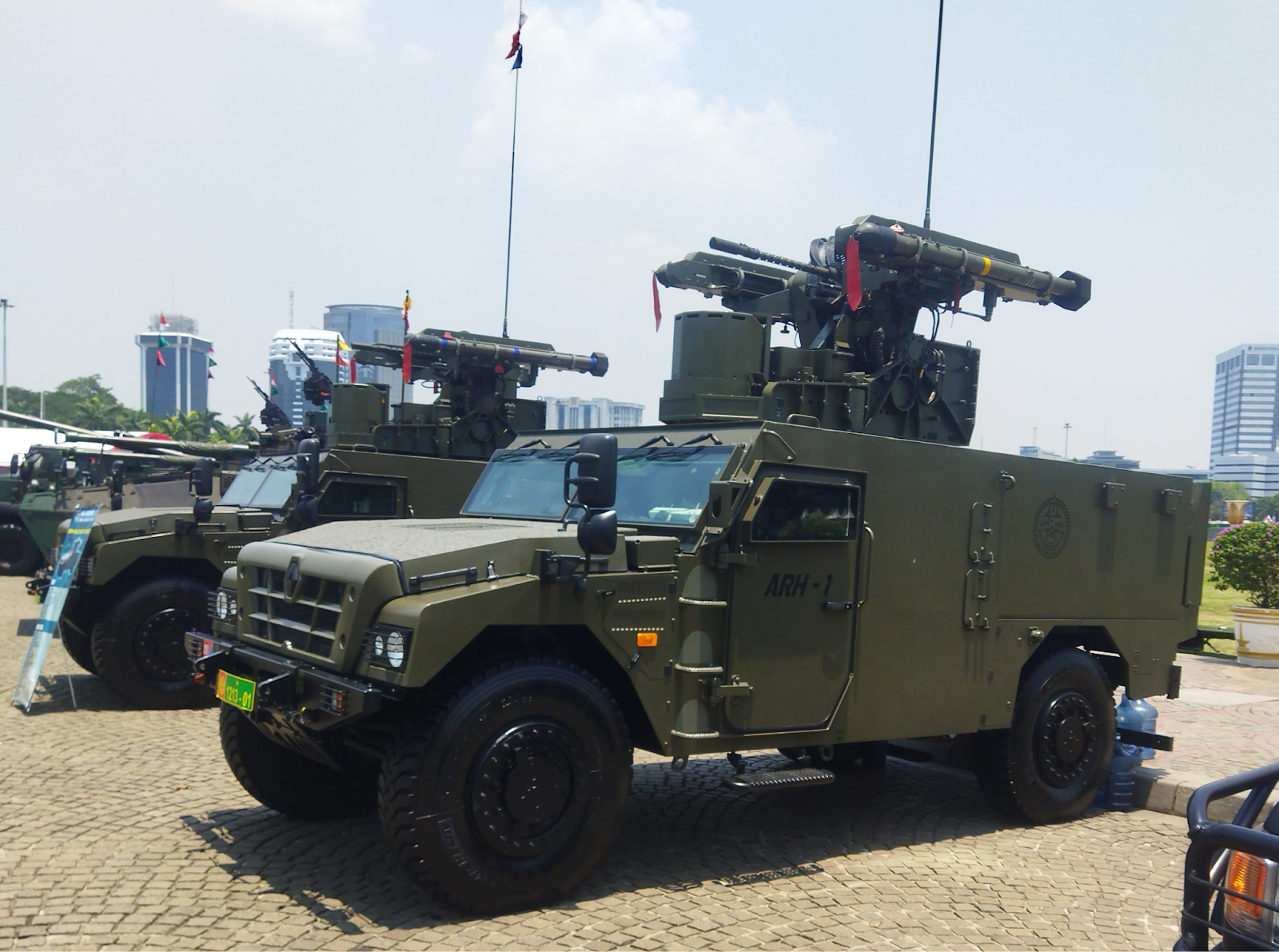

⬠ Sherpa Mistral MPCV Description Sherpa light APC with the Mistral MPCV system. It can fire two mistrals at once. The missile has a range of 6500m with a max speed of 930m/s. It's also equipped with IFF, gyro-stabilization, navigation unit, as well as IR and TV camera. It can fire the missiles every 2 seconds and can detect up to 16 targets at once. The launcher has -10 degrees of depression with 55 degrees of elevation. The launcher can be guided manually or remotely within the hull. The variant used for the MPCV is the Sherpa Station Wagon. The vehicle was showcased as early 2014 during a defile for the Independence Day anniversary and is in service today. One battalion that is operating this vehicle is the 1st Air Defence Artillery Battalion. Specifications Weight : 7.7 - 9.8 tons Length : 6m Width : 2.4m Height : 3.3m Crew : 4-5 Engine : Renault MD-5 4-Cylinder Diesel engine (215-265 hp) Max Speed : 110km/h Armour : STANAG level 2 but can be up-armored to level 3 Armaments Gun : 4x Mistral F3 mounted on the Sherpa Light MPCV platform Secondary : 1x 12.7mm Machine gun mounted on the center of the launcher platform Source - Renault Sherpa Light: Rantis Pengusung Rudal Mistral RCWS Arhanud TNI AD - Sherpa MPCV - 1st Air Defence Artillery Battalion Banner | Twitter |
Rank 8 |

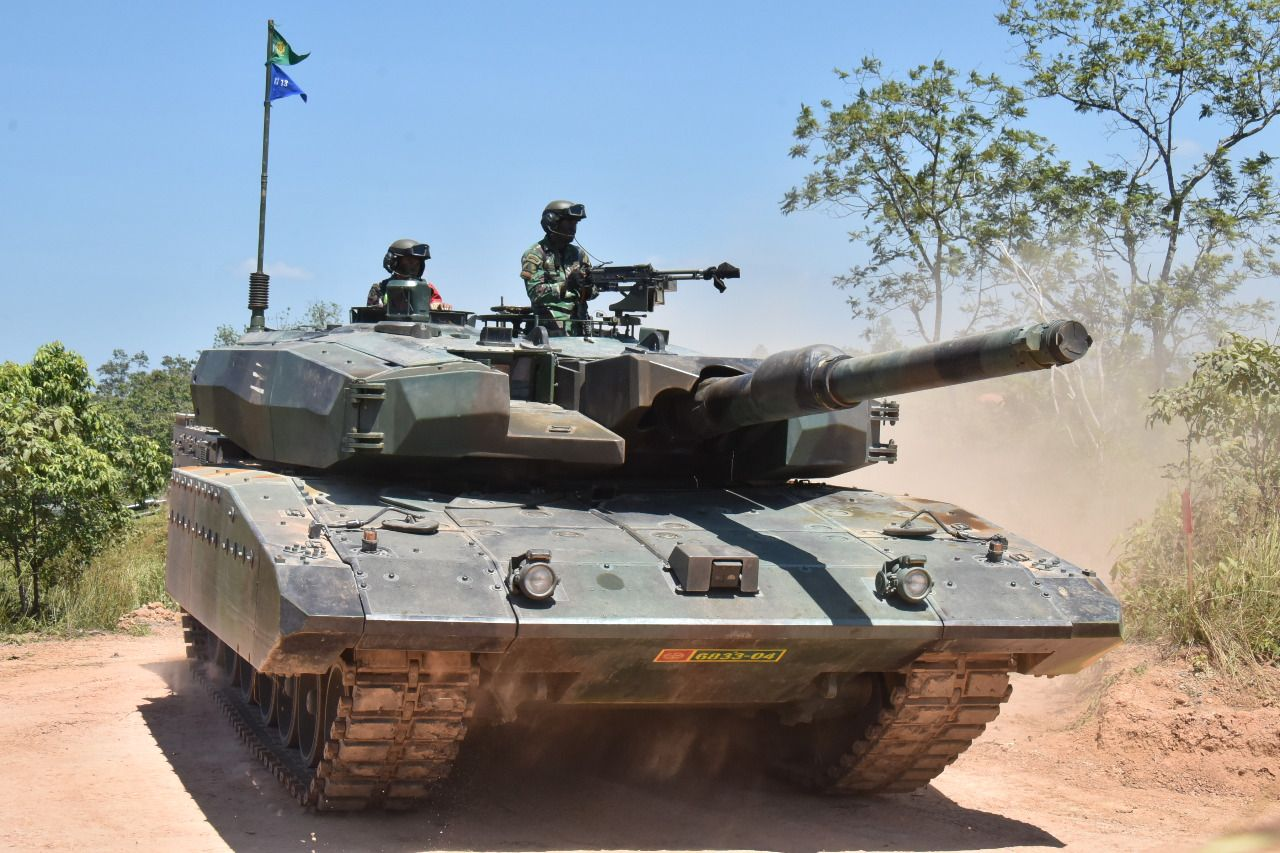

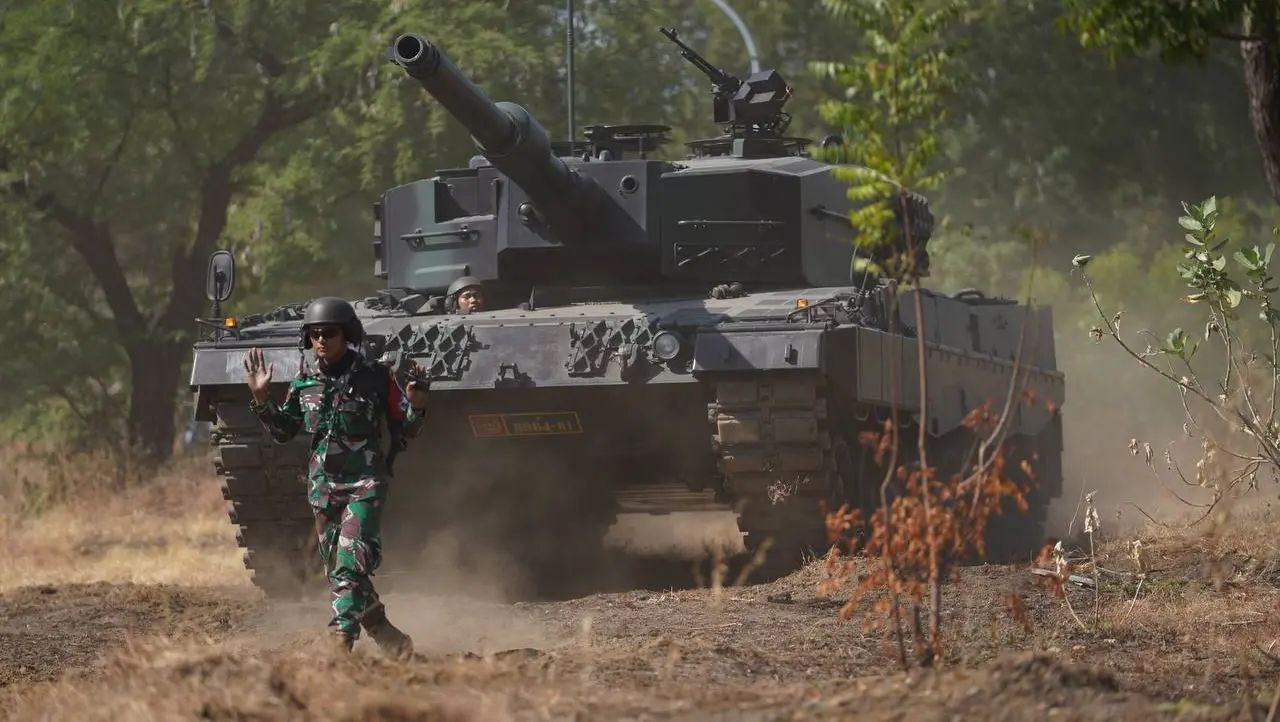

Leopard 2RI Description Indonesian variant of the Pz87 with the MBT Revolution upgrade similar to the Leopard 2PL and SG. The tank features an improved fire control system, upgraded armor package protecting the hull and the turret as well as cameras on the front and the back of the hull for the driver. The vehicle is fitted with an AMAP composite block made by IBD-Deisenroth, it is made with nanoceramic as well as titanium and steel alloy. Its ammunition includes DM11 HE-TF and DM53 APFSDS. Additionally, Nexter will provide SHARD APFSDS and HE shell for the tank in the near future. Around 103 vehicles are in service. They were initially purchased in 2012 and delivered in around 2016 with 42 Leopard 2a4+ and another 61 being upgraded to the Leopard 2RI standard. Specifications Weight : 60 tons Length : ≈ 9.7m Width : ≈ 3.7m Height : ≈ 2.5m Crew : 4 Engine : MTU MB-837 Ka501 diesel engine (1500hp) Max Speed : ≈ 70km/h Armour : up to 800mm (not including additional AMAP composite armor) Armaments Gun : 120mm Rheinmetall L/44 Smoothbore gun Secondary : - 1x 7.62mm Coaxial Machine gun (FN MAG or M240C/D) - 1x 12.7mm or 7.62mm Roof mounted Machine gun Source - Leopard 2 MBT Revolution by Rheinmetall | Leopard 2A4 Upgrade - MBT Leopard 2A4 Indonesia Akan Dilengkapi Munisi Nexter SHARD 120 APFSDS - Gunakan 4 Jenis Munisi, 9 MBT Leopard Yonkav 1 Jalani Boresighting dan Zeroing - Jelajahi “Body” MBT Leopard 2Ri Bersama Lady Lara Croft - Close Up! Konfigurasi Awak Ranpur MBT Leopard 2Ri TNI AD - Revolution Main battle tank | Web Archive - Rheinmetall L/44 120mm: Senjata Pamungkas MBT Leopard 2A4 Revolution TNI AD |
Currently not suggested but can also be added |
|
